Specificaties

Design:

Temperatuurbereik:
Tolerantie:
Materiaal:

- Steekdeel:

- Elastomeester:

Snelheid:
Optioneel:

2 steekdelen concentrisch bewerkt met gebogen klauwen.
Verschilt per type elastomeerster
0.01 - 0.05 mm tussen as en steekdeel

≤ series 450 in hoogwaardig aluminium, series 800 ≥ staal
precisie gietwerk, slijtvast, en thermisch stabiel polymeer
Zie tabel. ISO 2.5 balanceer klasse op aanvraag leverbaar
Klant specifiek ontwerp, RVS en Atex.

Omschrijving

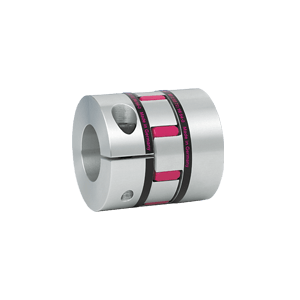

Deze zeer compacte R+W klauwkoppeling van het type EKL is eenvoudig te (de)monteren. De concentrisch bewerkte klemnaven geven de koppeling een zeer mooie rondloop. Het press fit design zorgt ervoor dat deze precisie koppeling spelingsvrij is. De EKL koppeling is te combineren met verschillende typen R+W elastomeersterren. Alle typen R+W elastomeersterren dempen de trillingen en zijn elektrisch isolerend, waarbij de ATEX versie juist geleidend is. Voor specifieke vragen over klauwkoppelingen neem dan contact op met VARIODRIVE.

Specificaties

Design:
Temperatuurbereik:
Tolerantie:
Materiaal:

- Steekdeel:⠀
- Elastomeester:⠀
Snelheid:⠀
Optioneel:

2 steekdelen concentrisch bewerkt met gebogen klauwen.
Verschilt per type elastomeerster
0.01 - 0.05 mm tussen as en steekdeel

≤ series 450 in hoogwaardig aluminium, series 800 ≥ staal
precisie gietwerk, slijtvast, en thermisch stabiel polymeer
Zie tabel. ISO 2.5 balanceer klasse op aanvraag leverbaar
Klant specifiek ontwerp, RVS en Atex.

Specificaties

Design: 2 steekdelen concentrisch bewerkt met gebogen klauwen.
Temperatuurbereik: Verschilt per type elastomeerster
Tolerantie: 0.01 - 0.05 mm tussen as en steekdeel
Materiaal:

- Steekdeel: ≤ series 450 in hoogwaardig aluminium, series 800 ≥ staal
- Elastomeester: precisie gietwerk, slijtvast, en thermisch stabiel polymeer
Snelheid: Zie tabel. ISO 2.5 balanceer klasse op aanvraag leverbaar
Optioneel: Klant specifiek ontwerp, RVS en Atex.

Toepassingen

  • Machinebouw
  • Servo-drive technologie
  • Medische technologie
  • Renewable energy
  • Mijnbouw technologie
  • Pompen en compressoren
  • Transportsystemen

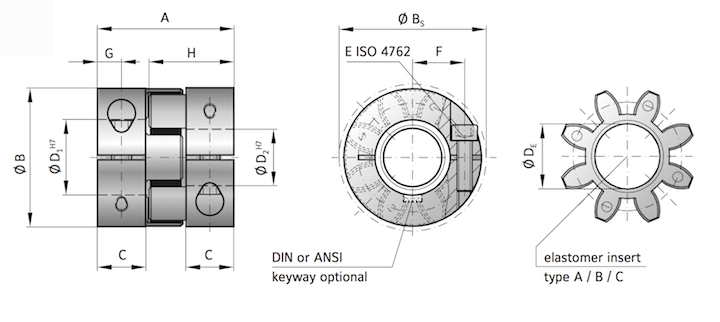

EKL Serien2
Type (Elastomer insert)A|B|C
Rated torque (Nm)TKN2|2,4|0,5
Fit length (mm)C6
Inside diameter possible from Ø to Ø H7 (mm)
D1/23-8
Inside diameter of elastomer (mm)DE6,2
Outside diameter (mm)B16
Outside diameter with screw head (mm)BS17
Moment of inertia per hub (10-3 kgm2)J1/J20,0003
Approximate weight (kg)0,008
Fastening screw (ISO 4762)EM2
Tightening torque of the fastening screw (Nm)E0,6
Distance between centerlines (mm)F5,5
Distance (mm)G3
Speed standard (min -1)15000
Speed balanced (10³min-1)60|67|45
Hub length (mm)H12
Maximum torque* (Nm)TKmax4|4,8|1
Overall length (mm)A20
2
CAD
EKL Serien5
Type (Elastomer insert)A|B|C
Rated torque (Nm)TKN9|12|2
Fit length (mm)C8
Inside diameter possible from Ø to Ø H7 (mm)
D1/24-12,7
Inside diameter of elastomer (mm)DE10,2
Outside diameter (mm)B25
Outside diameter with screw head (mm)BS25
Moment of inertia per hub (10-3 kgm2)J1/J20,002
Approximate weight (kg)0,02
Fastening screw (ISO 4762)EM3
Tightening torque of the fastening screw (Nm)E2
Distance between centerlines (mm)F8
Distance (mm)G4
Speed standard (min -1)15000
Speed balanced (10³min-1)57|65|43
Hub length (mm)H16,7
Maximum torque* (Nm)TKmax18|24|4
Overall length (mm)A26
5
CAD
EKL Serien10
Type (Elastomer insert)A|B|C
Rated torque (Nm)TKN12,5|16|4
Fit length (mm)C10,3
Inside diameter possible from Ø to Ø H7 (mm)
D1/24-16
Inside diameter of elastomer (mm)DE14,2
Outside diameter (mm)B32
Outside diameter with screw head (mm)BS32
Moment of inertia per hub (10-3 kgm2)J1/J20,003
Approximate weight (kg)0,05
Fastening screw (ISO 4762)EM4
Tightening torque of the fastening screw (Nm)E4
Distance between centerlines (mm)F10,5
Distance (mm)G5
Speed standard (min -1)13000
Speed balanced (10³min-1)53|63|40
Hub length (mm)H20,7
Maximum torque* (Nm)TKmax25|32|6
Overall length (mm)A32
10
CAD
EKL Serien20
Type (Elastomer insert)A|B|C
Rated torque (Nm)TKN17|21|6
Fit length (mm)C17
Inside diameter possible from Ø to Ø H7 (mm)
D1/28-25
Inside diameter of elastomer (mm)DE19,2
Outside diameter (mm)B42
Outside diameter with screw head (mm)BS44,5
Moment of inertia per hub (10-3 kgm2)J1/J20,01
Approximate weight (kg)0,12
Fastening screw (ISO 4762)EM5
Tightening torque of the fastening screw (Nm)E8
Distance between centerlines (mm)F15,5
Distance (mm)G8,5
Speed standard (min -1)12500
Speed balanced (10³min-1)45|60|35
Hub length (mm)H31
Maximum torque* (Nm)TKmax34|42|12
Overall length (mm)A50
20
CAD
EKL Serien60
Type (Elastomer insert)A|B|C
Rated torque (Nm)TKN60|75|20
Fit length (mm)C20
Inside diameter possible from Ø to Ø H7 (mm)
D1/212-32
Inside diameter of elastomer (mm)DE26,2
Outside diameter (mm)B56
Outside diameter with screw head (mm)BS57
Moment of inertia per hub (10-3 kgm2)J1/J20,04
Approximate weight (kg)0,3
Fastening screw (ISO 4762)EM6
Tightening torque of the fastening screw (Nm)E15
Distance between centerlines (mm)F21
Distance (mm)G10
Speed standard (min -1)11000
Speed balanced (10³min-1)31|31|25
Hub length (mm)H36
Maximum torque* (Nm)TKmax120|150|35
Overall length (mm)A58
60
CAD
EKL Serien150
Type (Elastomer insert)A|B|C
Rated torque (Nm)TKN160|200|42
Fit length (mm)C21
Inside diameter possible from Ø to Ø H7 (mm)
D1/219-36
Inside diameter of elastomer (mm)DE29,2
Outside diameter (mm)B66,5
Outside diameter with screw head (mm)BS68
Moment of inertia per hub (10-3 kgm2)J1/J20,08
Approximate weight (kg)0,5
Fastening screw (ISO 4762)EM8
Tightening torque of the fastening screw (Nm)E35
Distance between centerlines (mm)F24
Distance (mm)G11
Speed standard (min -1)10000
Speed balanced (10³min-1)22|26|18
Hub length (mm)H39
Maximum torque* (Nm)TKmax320|400|85
Overall length (mm)A62
150
CAD
EKL Serien300
Type (Elastomer insert)A|B|C
Rated torque (Nm)TKN325|405|84
Fit length (mm)C31
Inside diameter possible from Ø to Ø H7 (mm)
D1/220-45
Inside diameter of elastomer (mm)DE36,2
Outside diameter (mm)B82
Outside diameter with screw head (mm)BS85
Moment of inertia per hub (10-3 kgm2)J1/J20,3
Approximate weight (kg)0,9
Fastening screw (ISO 4762)EM10
Tightening torque of the fastening screw (Nm)E70
Distance between centerlines (mm)F29
Distance (mm)G15
Speed standard (min -1)9000
Speed balanced (10³min-1)22|26|16
Hub length (mm)H52
Maximum torque* (Nm)TKmax650|810|170
Overall length (mm)A86
300
CAD
EKL Serien450
Type (Elastomer insert)A|B|C
Rated torque (Nm)TKN530|660|95
Fit length (mm)C34
Inside diameter possible from Ø to Ø H7 (mm)
D1/228-60
Inside diameter of elastomer (mm)DE46,2
Outside diameter (mm)B102
Outside diameter with screw head (mm)BS105
Moment of inertia per hub (10-3 kgm2)J1/J20,66
Approximate weight (kg)1,5
Fastening screw (ISO 4762)EM12
Tightening torque of the fastening screw (Nm)E120
Distance between centerlines (mm)F38
Distance (mm)G17,5
Speed standard (min -1)8000
Speed balanced (10³min-1)16|17|12
Hub length (mm)H57
Maximum torque* (Nm)TKmax1060|1350|190
Overall length (mm)A94
450
CAD
EKL Serien800
Type (Elastomer insert)A|B|C
Rated torque (Nm)TKN950|1100|240
Fit length (mm)C46
Inside diameter possible from Ø to Ø H7 (mm)
D1/235-80
Inside diameter of elastomer (mm)DE60,5
Outside diameter (mm)B136,5
Outside diameter with screw head (mm)BS139
Moment of inertia per hub (10-3 kgm2)J1/J28
Approximate weight (kg)8,5
Fastening screw (ISO 4762)EM16
Tightening torque of the fastening screw (Nm)E290
Distance between centerlines (mm)F50,5
Distance (mm)G23
Speed standard (min -1)4000
Speed balanced (10³min-1)13|13|8
Hub length (mm)H74
Maximum torque* (Nm)TKmax1900|2150|400
Overall length (mm)A123
800
CAD
