Specificaties

Design:


Temperatuurbereik:
Tolerantie:

Materiaal:

- Steekdeel:

- Elastomeester:

Snelheid:
Optioneel:

2 klemnaven concentrisch bewerkt met gebogen klauwen. Ene zijde met klemnaaf en schroef ISO 4762. Andere zijde met spandoorn.
Verschilt per type elastomeer
0.01 - 0.05 mm tussen as en steekdeel - standaard boring tolerantie voor zichzelf vastzettende schacht is ISO H7.

≤ series 450 in hoogwaardig aluminium, series 800 ≥ staal
precisie gietwerk, slijtvast, en thermisch stabiel polymeer
Zie tabel. ISO 2.5 balanceer klasse op aanvraag leverbaar
Klant specifiek ontwerp, RVS en Atex.

Omschrijving

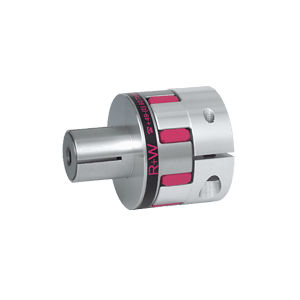

Het type EK7 klauwkoppeling van R+W Couplings heeft een compact design en is gemakkelijk te (de)monteren. De EK7 koppeling biedt een spelingsvrije oplossing. Deze precisie koppeling is te combineren met verschillende typen R+W elastomeersterren. Alle typen R+W elastomeersterren dempen de trillingen en zijn elektrisch isolerend, waarbij de ATEX versie juist geleidend is. Voor specifieke vragen over klauwkoppelingen neem dan contact op met VARIODRIVE.

Specificaties

Design:

Temperatuurbereik:
Tolerantie:

Materiaal:

- Steekdeel:⠀
- Elastomeester:⠀
Snelheid:⠀
Optioneel:

2 klemnaven concentrisch bewerkt met gebogen klauwen. Ene zijde met klemnaaf en schroef ISO 4762. Andere zijde met spandoorn.
Verschilt per type elastomeer
0.01 - 0.05 mm tussen as en steekdeel - standaard boring tolerantie voor zichzelf vastzettende schacht is ISO H7.

≤ series 450 in hoogwaardig aluminium, series 800 ≥ staal
precisie gietwerk, slijtvast, en thermisch stabiel polymeer
Zie tabel. ISO 2.5 balanceer klasse op aanvraag leverbaar
Klant specifiek ontwerp, RVS en Atex.

Specificaties

Design: 2 klemnaven concentrisch bewerkt met gebogen klauwen. Ene zijde met klemnaaf en schroef ISO 4762. Andere zijde met spandoorn.
Temperatuurbereik: Verschilt per type elastomeerster
Tolerantie: 0.01 - 0.05 mm tussen as en steekdeel - standaard boring tolerantie voor zichzelf vastzettende schacht is ISO H7.
Materiaal:

- Steekdeel: ≤ series 450 in hoogwaardig aluminium, series 800 ≥ staal
- Elastomeester: precisie gietwerk, slijtvast, en thermisch stabiel polymeer
Snelheid: Zie tabel. ISO 2.5 balanceer klasse op aanvraag leverbaar
Optioneel: Klant specifiek ontwerp, RVS en Atex.

Toepassingen

  • Machinebouw
  • Servo-drive technologie
  • Medische technologie
  • Renewable energy
  • Mijnbouw technologie
  • Pompen en compressoren
  • Transportsystemen

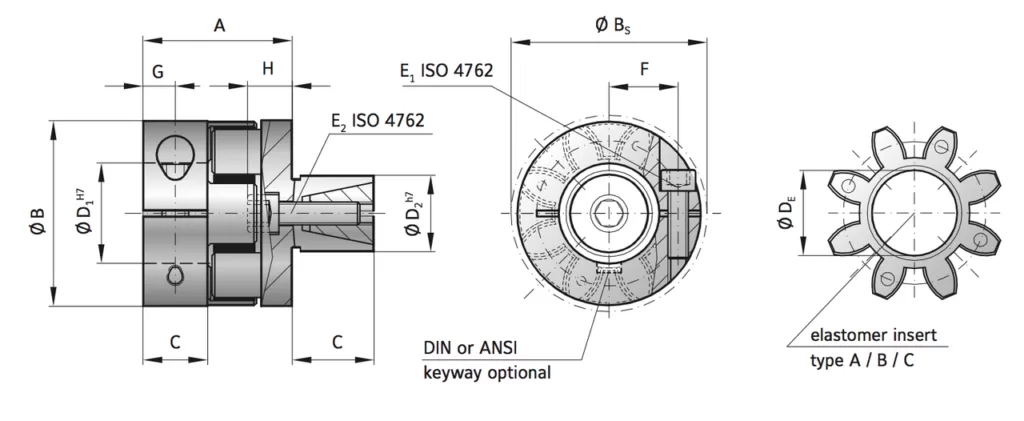

EK7 Serien5
Type (Elastomer insert)A|B|C
Rated torque (Nm)TKN9|12|2
Inside diameter possible from Ø to Ø H7 (mm)
D14-12,7
Inside diameter of elastomer (mm)DE10,2
Outside diameter (mm)B25
Outside diameter with screw head (mm)BS25
Moment of inertia D1 (10-3 kgm2)J10,002
Moment of inertia D2 (10-3 kgm2)J20,002
Approximate weight (kg)0,04
Fastening screw (ISO 4762)E1M3
Fastening screw (ISO 4762)E2M4
Distance between centerlines (mm)F8
Distance (mm)G4
Speed standard (min -1)15000
Speed balanced (10³min-1)57|65|43
Mounting length (mm)C18
Fit length (mm)C212
Outside diameter range h7 (mm)D210-16
Maximum torque* (Nm)TKmax18|24|4
Overall length (mm)A22
Tightening torqueE12
Tightening torque (Nm)E24
Length (mm)H7
5
CAD
EK7 Serien10
Type (Elastomer insert)A|B|C
Rated torque (Nm)TKN12,5|16|4
Inside diameter possible from Ø to Ø H7 (mm)
D15-16
Inside diameter of elastomer (mm)DE14,2
Outside diameter (mm)B32
Outside diameter with screw head (mm)BS32
Moment of inertia D1 (10-3 kgm2)J10,003
Moment of inertia D2 (10-3 kgm2)J20,01
Approximate weight (kg)0,05
Fastening screw (ISO 4762)E1M4
Fastening screw (ISO 4762)E2M5
Distance between centerlines (mm)F10,5
Distance (mm)G5
Speed standard (min -1)13000
Speed balanced (10³min-1)53|63|40
Mounting length (mm)C110,3
Fit length (mm)C220
Outside diameter range h7 (mm)D213-25
Maximum torque* (Nm)TKmax25|32|6
Overall length (mm)A28
Tightening torqueE14
Tightening torque (Nm)E29
Length (mm)H7
10
CAD
EK7 Serien20
Type (Elastomer insert)A|B|C
Rated torque (Nm)TKN17|21|6
Inside diameter possible from Ø to Ø H7 (mm)
D18-25
Inside diameter of elastomer (mm)DE19,2
Outside diameter (mm)B42
Outside diameter with screw head (mm)BS44,5
Moment of inertia D1 (10-3 kgm2)J10,01
Moment of inertia D2 (10-3 kgm2)J20,04
Approximate weight (kg)0,12
Fastening screw (ISO 4762)E1M5
Fastening screw (ISO 4762)E2M6
Distance between centerlines (mm)F15,5
Distance (mm)G8,5
Speed standard (min -1)12500
Speed balanced (10³min-1)45|60|35
Mounting length (mm)C117
Fit length (mm)C225
Outside diameter range h7 (mm)D214-30
Maximum torque* (Nm)TKmax34|42|12
Overall length (mm)A40
Tightening torqueE18
Tightening torque (Nm)E212
Length (mm)H10
20
CAD
EK7 Serien60
Type (Elastomer insert)A|B|C
Rated torque (Nm)TKN60|75|20
Inside diameter possible from Ø to Ø H7 (mm)
D112-32
Inside diameter of elastomer (mm)DE26,2
Outside diameter (mm)B56
Outside diameter with screw head (mm)BS57
Moment of inertia D1 (10-3 kgm2)J10,04
Moment of inertia D2 (10-3 kgm2)J20,1
Approximate weight (kg)0,3
Fastening screw (ISO 4762)E1M6
Fastening screw (ISO 4762)E2M8
Distance between centerlines (mm)F21
Distance (mm)G10
Speed standard (min -1)11000
Speed balanced (10³min-1)31|31|25
Mounting length (mm)C120
Fit length (mm)C227
Outside diameter range h7 (mm)D223-36
Maximum torque* (Nm)TKmax120|150|35
Overall length (mm)A46
Tightening torqueE115
Tightening torque (Nm)E232
Length (mm)H11
60
CAD
EK7 Serien150
Type (Elastomer insert)A|B|C
Rated torque (Nm)TKN160|200|42
Inside diameter possible from Ø to Ø H7 (mm)
D119-36
Inside diameter of elastomer (mm)DE29,2
Outside diameter (mm)B66,5
Outside diameter with screw head (mm)BS68
Moment of inertia D1 (10-3 kgm2)J10,08
Moment of inertia D2 (10-3 kgm2)J20,2
Approximate weight (kg)0,5
Fastening screw (ISO 4762)E1M8
Fastening screw (ISO 4762)E2M10
Distance between centerlines (mm)F24
Distance (mm)G11
Speed standard (min -1)10000
Speed balanced (10³min-1)22|26|18
Mounting length (mm)C121
Fit length (mm)C232
Outside diameter range h7 (mm)D226-42
Maximum torque* (Nm)TKmax320|400|85
Overall length (mm)A51
Tightening torqueE135
Tightening torque (Nm)E260
Length (mm)H16
150
CAD
EK7 Serien300
Type (Elastomer insert)A|B|C
Rated torque (Nm)TKN325|405|84
Inside diameter possible from Ø to Ø H7 (mm)
D120-45
Inside diameter of elastomer (mm)DE36,2
Outside diameter (mm)B82
Outside diameter with screw head (mm)BS85
Moment of inertia D1 (10-3 kgm2)J10,3
Moment of inertia D2 (10-3 kgm2)J21
Approximate weight (kg)0,9
Fastening screw (ISO 4762)E1M10
Fastening screw (ISO 4762)E2M12
Distance between centerlines (mm)F29
Distance (mm)G15
Speed standard (min -1)9000
Speed balanced (10³min-1)22|26|16
Mounting length (mm)C131
Fit length (mm)C245
Outside diameter range h7 (mm)D238-60
Maximum torque* (Nm)TKmax650|810|170
Overall length (mm)A68
Tightening torqueE170
Tightening torque (Nm)E2110
Length (mm)H20
300
CAD
EK7 Serien450
Type (Elastomer insert)A|B|C
Rated torque (Nm)TKN530|660|95
Inside diameter possible from Ø to Ø H7 (mm)
D128-60
Inside diameter of elastomer (mm)DE46,2
Outside diameter (mm)B102
Outside diameter with screw head (mm)BS105
Moment of inertia D1 (10-3 kgm2)J10,66
Moment of inertia D2 (10-3 kgm2)J22,6
Approximate weight (kg)1,5
Fastening screw (ISO 4762)E1M12
Fastening screw (ISO 4762)E2M16
Distance between centerlines (mm)F38
Distance (mm)G17,5
Speed standard (min -1)8000
Speed balanced (10³min-1)16|17|12
Mounting length (mm)C134
Fit length (mm)C255
Outside diameter range h7 (mm)D242-70
Maximum torque* (Nm)TKmax1060|1350|190
Overall length (mm)A76
Tightening torqueE1120
Tightening torque (Nm)E2240
Length (mm)H27
450
CAD
EK7 Serien800
Type (Elastomer insert)A|B|C
Rated torque (Nm)TKN950|1100|240
Inside diameter possible from Ø to Ø H7 (mm)
D135-80
Inside diameter of elastomer (mm)DE60,5
Outside diameter (mm)B136,5
Outside diameter with screw head (mm)BS139
Moment of inertia D1 (10-3 kgm2)J18
Moment of inertia D2 (10-3 kgm2)J29
Approximate weight (kg)7,6
Fastening screw (ISO 4762)E1M16
Fastening screw (ISO 4762)E2M16
Distance between centerlines (mm)F50,5
Distance (mm)G23
Speed standard (min -1)4000
Speed balanced (10³min-1)13|13|8
Mounting length (mm)C146
Fit length (mm)C260
Outside diameter range h7 (mm)D242-80
Maximum torque* (Nm)TKmax1900|2150|400
Overall length (mm)A94
Tightening torqueE1290
Tightening torque (Nm)E2300
Length (mm)H27
800
CAD
