Specificaties

Design:

Temperatuurbereik:
Speling:
Service-life:
Materiaal:
- Balgdeel:
- Naaf:
- Press fit segment:
Piekbelasting:
Snelheid:
Optioneel:

Koppeling met klemring aan de ene zijde en conische huls aan de andere zijde
-30 - 100 °C
Geen
Geen service

Zeer flexibel hoogwaardig roestvrij staal
< serie 80 van aluminium, > serie 150 van staal
Fiberglas versterkt plastic gevormd op een naaf
Tot 1,5x voorgeschreven waarden
Tot 10.000 rpm, > 10.000 rpm bij fijn uitgebalanceerde versie
Klant specifiek ontwerp, ATEX en cleanroom versie op aanvraag

Omschrijving

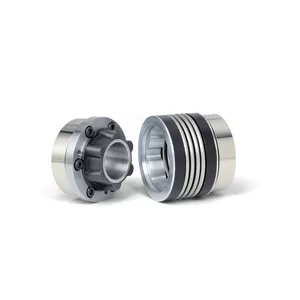

De BK6 balgkoppeling van R+W Couplings heeft een hoge mate van bedrijfszekerheid en is geschikt voor axiale montage. Het design van deze precisie koppeling maakt (de)monteren zeer eenvoudig. Het tapse press fit systeem maakt het mogelijk de koppeling in twee delen te monteren. Deze verbinding is tevens elektrisch isolerend. De schroeven van de klemnaven worden via de binnenzijde van de koppeling aangedraaid. Door deze frictie klemverbinding is de koppeling absoluut spelingsvrij. Dankzij de geforceerd gevormde balg kan het element tegelijkertijd zowel laterale, axiale als angulaire uitlijnfouten opvangen. Zolang deze niet buiten het maximale gebied vallen, zal er geen metaalmoeheid in het balgmateriaal optreden en is de koppeling volkomen vrij van slijtage. Neem voor specifieke vragen over balgkoppelingen contact op met VARIODRIVE.

Specificaties

Design:

Temperatuurbereik:
Speling:
Service-life:
Materiaal:
- Balgdeel:
- Naaf:
- Press fit segment:
Piekbelasting:
Snelheid:
Optioneel:

Koppeling met klemring aan de ene zijde en conische huls aan de andere zijde
-30 - 100 °C
Geen
Geen service

Zeer flexibel hoogwaardig roestvrij staal
< serie 80 van aluminium, > serie 150 van staal
Fiberglas versterkt plastic gevormd op een naaf
Tot 1,5x voorgeschreven waarden
Tot 10.000 rpm, > 10.000 rpm bij fijn uitgebalanceerde versie
Klant specifiek ontwerp, ATEX en cleanroom versie op aanvraag

Specificaties

Design: Koppeling met klemring aan de ene zijde en conische huls aan de andere zijde
Temperatuurbereik: -30 - 100 °C
Speling: Geen
Service-life: Geen service
Materiaal:
- Balgdeel:
Zeer flexibel hoogwaardig roestvrij staal
- Naaf: < serie 80 van aluminium, > serie 150 van staal
- Press fit segment: fiberglas versterkt plastic gevormd op een naaf
Piekbelasting: Tot 1,5x voorgeschreven waarden
Snelheid: Tot 10.000 rpm, > 10.000 rpm bij fijn uitgebalanceerde versie
Optioneel: Klant specifiek ontwerp, ATEX en cleanroom versie op aanvraag

Toepassingen

  • Machinebouw
  • Servo-drive technologie
  • Medische technologie
  • Lucht- en ruimtevaart
  • Renewable energy
  • Transportsystemen

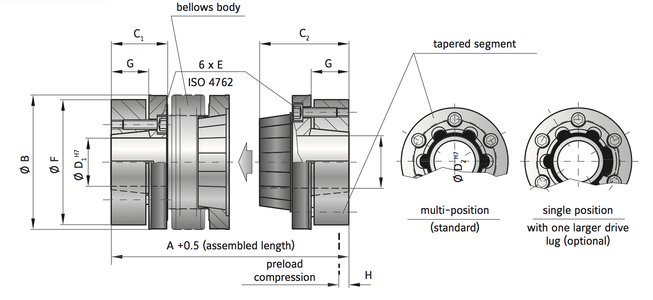

BK6 Serien15
Rated torque (Nm)TKN15
Overall length (inserted) (mm)A+0,558 | 65
Inside diameter possible from Ø to Ø H7 (mm)
D110-22
Inside diameter possible from Ø to Ø H7 (mm)
D210-22
Outside diameter (mm)B49
Moment of inertia (10-3 kgm2)Jges.0,1 | 0,12
Approximate weight (kg)0,3 | 0,32
Torsional stiffness (10³ Nm/rad)CT10 | 8
Lateral ± (mm)max.0,15 | 0,2
Angular ± (degree)max.1 | 1,5
Lateral spring stiffness (N/mm)Cr475 | 137
Fastening screw (ISO 4762)EM4
Tightening torque of the fastening screw (Nm)E3,5
Mounting length (mm)C113,5
Mounting length (mm)C229
Preload compression (mm)H0,2-1,0
Axial recovery force at maximum pretensioning (N)H20 | 12
Axial* ± (mm)max.0,5 | 1
Diameter of clamping ring (mm)F46,5
Clamping ring length (mm)G9,5
15
CAD
BK6 Serien30
Rated torque (Nm)TKN30
Overall length (inserted) (mm)A+0,568 | 76
Inside diameter possible from Ø to Ø H7 (mm)
D112-24
Inside diameter possible from Ø to Ø H7 (mm)
D212-24
Outside diameter (mm)B55
Moment of inertia (10-3 kgm2)Jges.0,2 | 0,25
Approximate weight (kg)0,5 | 0,52
Torsional stiffness (10³ Nm/rad)CT20 | 14
Lateral ± (mm)max.0,2 | 0,25
Angular ± (degree)max.1 | 1,5
Lateral spring stiffness (N/mm)Cr900 | 270
Fastening screw (ISO 4762)EM5
Tightening torque of the fastening screw (Nm)E6,5
Mounting length (mm)C121,5
Mounting length (mm)C234
Preload compression (mm)H0,5-1,0
Axial recovery force at maximum pretensioning (N)H50 | 30
Axial* ± (mm)max.0,5 | 1
Diameter of clamping ring (mm)F51
Clamping ring length (mm)G10,5
30
CAD
BK6 Serien60
Rated torque (Nm)TKN60
Overall length (inserted) (mm)A+0,579 | 89
Inside diameter possible from Ø to Ø H7 (mm)
D112-32
Inside diameter possible from Ø to Ø H7 (mm)
D212-32
Outside diameter (mm)B66
Moment of inertia (10-3 kgm2)Jges.0,4 | 0,45
Approximate weight (kg)0,82 | 0,84
Torsional stiffness (10³ Nm/rad)CT38 | 28
Lateral ± (mm)max.0,2 | 0,25
Angular ± (degree)max.1 | 1,5
Lateral spring stiffness (N/mm)Cr1200 | 420
Fastening screw (ISO 4762)EM5
Tightening torque of the fastening screw (Nm)E8
Mounting length (mm)C118
Mounting length (mm)C239
Preload compression (mm)H0,5-1,5
Axial recovery force at maximum pretensioning (N)H70 | 45
Axial* ± (mm)max.0,5 | 1
Diameter of clamping ring (mm)F60
Clamping ring length (mm)G11,5
60
CAD
BK6 Serien150
Rated torque (Nm)TKN150
Overall length (inserted) (mm)A+0,597 | 109
Inside diameter possible from Ø to Ø H7 (mm)
D115-40
Inside diameter possible from Ø to Ø H7 (mm)
D215-40
Outside diameter (mm)B81
Moment of inertia (10-3 kgm2)Jges.2,0 | 2,5
Approximate weight (kg)1,6 | 1,7
Torsional stiffness (10³ Nm/rad)CT88 | 55
Lateral ± (mm)max.0,2 | 0,25
Angular ± (degree)max.1 | 1,5
Lateral spring stiffness (N/mm)Cr1550 | 435
Fastening screw (ISO 4762)EM6
Tightening torque of the fastening screw (Nm)E12
Mounting length (mm)C123,5
Mounting length (mm)C249,5
Preload compression (mm)H0,5-1,5
Axial recovery force at maximum pretensioning (N)H82 | 52
Axial* ± (mm)max.1 | 2
Diameter of clamping ring (mm)F74
Clamping ring length (mm)G17,5
150
CAD
BK6 Serien300
Rated torque (Nm)TKN300
Overall length (inserted) (mm)A+0,5113 | 127
Inside diameter possible from Ø to Ø H7 (mm)
D124-56
Inside diameter possible from Ø to Ø H7 (mm)
D224-56
Outside diameter (mm)B110
Moment of inertia (10-3 kgm2)Jges.5,4 | 6,1
Approximate weight (kg)4,1 | 4,2
Torsional stiffness (10³ Nm/rad)CT225 | 175
Lateral ± (mm)max.0,25 | 0,3
Angular ± (degree)max.1 | 1,5
Lateral spring stiffness (N/mm)Cr3750 | 1050
Fastening screw (ISO 4762)EM8
Tightening torque of the fastening screw (Nm)E30
Mounting length (mm)C127
Mounting length (mm)C259
Preload compression (mm)H0,5-1,5
Axial recovery force at maximum pretensioning (N)H157 | 106
Axial* ± (mm)max.1,5 | 2
Diameter of clamping ring (mm)F102
Clamping ring length (mm)G20
300
CAD
BK6 Serien500
Rated torque (Nm)TKN500
Overall length (inserted) (mm)A+0,5132 | 145
Inside diameter possible from Ø to Ø H7 (mm)
D130-60
Inside diameter possible from Ø to Ø H7 (mm)
D230-60
Outside diameter (mm)B124
Moment of inertia (10-3 kgm2)Jges.8,4 | 9,1
Approximate weight (kg)6,0 | 6,3
Torsional stiffness (10³ Nm/rad)CT255 | 245
Lateral ± (mm)max.0,3 | 0,35
Angular ± (degree)max.1 | 1,5
Lateral spring stiffness (N/mm)Cr2500 | 840
Fastening screw (ISO 4762)EM8
Tightening torque of the fastening screw (Nm)E32
Mounting length (mm)C132
Mounting length (mm)C268
Preload compression (mm)H1,0-2,0
Axial recovery force at maximum pretensioning (N)H140 | 96
Axial* ± (mm)max.2,5 | 3,5
Diameter of clamping ring (mm)F114
Clamping ring length (mm)G23
500
CAD
BK6 Serien800
Rated torque (Nm)TKN800
Overall length (inserted) (mm)A+0,5140
Inside diameter possible from Ø to Ø H7 (mm)
D140-62
Inside diameter possible from Ø to Ø H7 (mm)
D240-62
Outside diameter (mm)B133
Moment of inertia (10-3 kgm2)Jges.17,5
Approximate weight (kg)8,1
Torsional stiffness (10³ Nm/rad)CT400
Lateral ± (mm)max.0,35
Angular ± (degree)max.1,5
Lateral spring stiffness (N/mm)Cr2000
Fastening screw (ISO 4762)EM10
Tightening torque of the fastening screw (Nm)E55
Mounting length (mm)C142
Mounting length (mm)C274
Preload compression (mm)H1,0-2,0
Axial recovery force at maximum pretensioning (N)H400
Axial* ± (mm)max.3
Diameter of clamping ring (mm)F126
Clamping ring length (mm)G27
800
CAD
BK6 Serien1500
Rated torque (Nm)TKN1500
Overall length (inserted) (mm)A+0,5158
Inside diameter possible from Ø to Ø H7 (mm)
D150-75
Inside diameter possible from Ø to Ø H7 (mm)
D250-75
Outside diameter (mm)B157
Moment of inertia (10-3 kgm2)Jges.44
Approximate weight (kg)16,2
Torsional stiffness (10³ Nm/rad)CT660
Lateral ± (mm)max.0,35
Angular ± (degree)max.1,5
Lateral spring stiffness (N/mm)Cr3600
Fastening screw (ISO 4762)EM12
Tightening torque of the fastening screw (Nm)E110
Mounting length (mm)C153
Mounting length (mm)C290,5
Preload compression (mm)H0,5-1,5
Axial recovery force at maximum pretensioning (N)H650
Axial* ± (mm)max.2
Diameter of clamping ring (mm)F146
Clamping ring length (mm)G32
1500
CAD
