BK5
balgkoppelingen
Specificaties
Design:⠀
Temperatuurbereik:
Speling:
Service-life:
Materiaal:
- Balgdeel:
- Naaf:
- Press fit segment:
Piekbelasting:
Snelheid:
Optioneel:
Koppeling met klemring aan beide zijden en taps press fit segment
-30 - 100 °C
Geen
Geen service
⠀
Zeer flexibel hoogwaardig roestvrij staal
Tot serie 80 van aluminium, vanaf serie 150 van staal
Fiberglas versterkt kunststof gevormd op een naaf
Tot 1,5x voorgeschreven waarden
Tot 10.000 rpm, > 10.000 rpm bij fijn uitgebalanceerde versie
Klant specifiek ontwerp, ATEX en cleanroom versie op aanvraag
Omschrijving

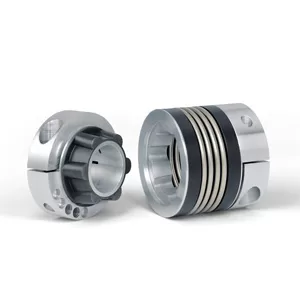

De BK5 balgkoppeling van R+W Couplings is zo ontworpen dat deze eenvoudig te (de)monteren is. Het tapse press fit systeem maakt het mogelijk de koppeling in twee delen te monteren. Deze verbinding is tevens elektrisch isolerend. Door het gebruik van frictie klemverbinding is deze precisie koppeling absoluut spelingsvrij. Dankzij de geforceerd gevormde balg kan het element tegelijkertijd zowel laterale, axiale als angulaire uitlijnfouten opvangen. Zolang deze niet buiten het maximale gebied vallen, zal er geen metaalmoeheid in het balgmateriaal optreden en is de koppeling volkomen vrij van slijtage. Neem voor specifieke vragen over balgkoppelingen contact op met VARIODRIVE.
Specificaties
Design:
Temperatuurbereik:
Speling:
Service-life:
Materiaal:
- Balgdeel:
- Naaf:
- Press fit segment:
Piekbelasting:
Snelheid:
Optioneel:
Koppeling met klemring aan beide zijden en taps press fit segment
-30 - 100 °C
Geen
Geen service
⠀
Zeer flexibel hoogwaardig roestvrij staal
Tot serie 80 van aluminium, vanaf serie 150 van staal
Fiberglas versterkt kunststof gevormd op een naaf
Tot 1,5x voorgeschreven waarden
Tot 10.000 rpm, > 10.000 rpm bij fijn uitgebalanceerde versie
Klant specifiek ontwerp, ATEX en cleanroom versie op aanvraag
Specificaties
Design: Koppeling met klemring aan beide zijden en taps press fit segment
Temperatuurbereik: -30 - 100 °C
Speling: Geen
Service-life: Geen service
Materiaal:
- Balgdeel: Zeer flexibel hoogwaardig roestvrij staal
- Naaf: Tot serie 80 van aluminium, vanaf serie 150 van staal
- Press fit segment: Fiberglas versterkt kunststof gevormd op een naaf
Piekbelasting: Tot 1,5x voorgeschreven waarden
Snelheid: Tot 10.000 rpm, > 10.000 rpm bij fijn uitgebalanceerde versie
Optioneel: Klant specifiek ontwerp, ATEX en cleanroom versie op aanvraag
Toepassingen
- Machinebouw
- Servo-drive technologie
- Medische technologie
- Gevoelige machines met ESD risico’s
- Renewable energy
- Transportsystemen
Tabel
| BK5 Series | |
| Rated torque (Nm) | TKN |
| Overall length (mm) | A-2 |
| Inside diameter possible from Ø to Ø H7 (mm) | D1 |
| Inside diameter possible from Ø to Ø H7 (mm) | D2 |
| Outside diameter (mm) | B |
| Moment of inertia (10-3 kgm2) | Jges. |
| Approximate weight (kg) | |
| Torsional stiffness (10³ Nm/rad) | CT |
| Lateral ± (mm) | max. |
| Angular ± (degree) | max. |
| Lateral spring stiffness (N/mm) | Cr |
| Fastening screw (ISO 4762) | E |
| Tightening torque of the fastening screw (Nm) | E |
| Distance between centerlines (mm) | F |
| Distance (mm) | G |
| Mounting length (mm) | C1 |
| Mounting length (mm) | C2 |
| Preload compression (mm) | H |
| Axial recovery force at maximum pretensioning (N) | H |
| Axial* ± (mm) | max. |
| BK5 Series | |
| Rated torque (Nm) | TKN |
| Overall length (mm) | A-2 |
| Inside diameter possible from Ø to Ø H7 (mm) | D1 |
| Inside diameter possible from Ø to Ø H7 (mm) | D2 |
| Outside diameter (mm) | B |
| Moment of inertia (10-3 kgm2) | Jges. |
| Approximate weight (kg) | |
| Torsional stiffness (10³ Nm/rad) | CT |
| Lateral ± (mm) | max. |
| Angular ± (degree) | max. |
| Lateral spring stiffness (N/mm) | Cr |
| Fastening screw (ISO 4762) | E |
| Tightening torque of the fastening screw (Nm) | E |
| Distance between centerlines (mm) | F |
| Distance (mm) | G |
| Mounting length (mm) | C1 |
| Mounting length (mm) | C2 |
| Preload compression (mm) | H |
| Axial recovery force at maximum pretensioning (N) | H |
| Axial* ± (mm) | max. |
| CAD Portal |
| BK5 Series | |
| Rated torque (Nm) | TKN |
| Overall length (mm) | A-2 |
| Inside diameter possible from Ø to Ø H7 (mm) | D1 |
| Inside diameter possible from Ø to Ø H7 (mm) | D2 |
| Outside diameter (mm) | B |
| Moment of inertia (10-3 kgm2) | Jges. |
| Approximate weight (kg) | |
| Torsional stiffness (10³ Nm/rad) | CT |
| Lateral ± (mm) | max. |
| Angular ± (degree) | max. |
| Lateral spring stiffness (N/mm) | Cr |
| Fastening screw (ISO 4762) | E |
| Tightening torque of the fastening screw (Nm) | E |
| Distance between centerlines (mm) | F |
| Distance (mm) | G |
| Mounting length (mm) | C1 |
| Mounting length (mm) | C2 |
| Preload compression (mm) | H |
| Axial recovery force at maximum pretensioning (N) | H |
| Axial* ± (mm) | max. |
| CAD Portal |
| BK5 Series | |
| Rated torque (Nm) | TKN |
| Overall length (mm) | A-2 |
| Inside diameter possible from Ø to Ø H7 (mm) | D1 |
| Inside diameter possible from Ø to Ø H7 (mm) | D2 |
| Outside diameter (mm) | B |
| Moment of inertia (10-3 kgm2) | Jges. |
| Approximate weight (kg) | |
| Torsional stiffness (10³ Nm/rad) | CT |
| Lateral ± (mm) | max. |
| Angular ± (degree) | max. |
| Lateral spring stiffness (N/mm) | Cr |
| Fastening screw (ISO 4762) | E |
| Tightening torque of the fastening screw (Nm) | E |
| Distance between centerlines (mm) | F |
| Distance (mm) | G |
| Mounting length (mm) | C1 |
| Mounting length (mm) | C2 |
| Preload compression (mm) | H |
| Axial recovery force at maximum pretensioning (N) | H |
| Axial* ± (mm) | max. |
| CAD Portal |
| BK5 Series | |
| Rated torque (Nm) | TKN |
| Overall length (mm) | A-2 |
| Inside diameter possible from Ø to Ø H7 (mm) | D1 |
| Inside diameter possible from Ø to Ø H7 (mm) | D2 |
| Outside diameter (mm) | B |
| Moment of inertia (10-3 kgm2) | Jges. |
| Approximate weight (kg) | |
| Torsional stiffness (10³ Nm/rad) | CT |
| Lateral ± (mm) | max. |
| Angular ± (degree) | max. |
| Lateral spring stiffness (N/mm) | Cr |
| Fastening screw (ISO 4762) | E |
| Tightening torque of the fastening screw (Nm) | E |
| Distance between centerlines (mm) | F |
| Distance (mm) | G |
| Mounting length (mm) | C1 |
| Mounting length (mm) | C2 |
| Preload compression (mm) | H |
| Axial recovery force at maximum pretensioning (N) | H |
| Axial* ± (mm) | max. |
| CAD Portal |
| BK5 Series | |
| Rated torque (Nm) | TKN |
| Overall length (mm) | A-2 |
| Inside diameter possible from Ø to Ø H7 (mm) | D1 |
| Inside diameter possible from Ø to Ø H7 (mm) | D2 |
| Outside diameter (mm) | B |
| Moment of inertia (10-3 kgm2) | Jges. |
| Approximate weight (kg) | |
| Torsional stiffness (10³ Nm/rad) | CT |
| Lateral ± (mm) | max. |
| Angular ± (degree) | max. |
| Lateral spring stiffness (N/mm) | Cr |
| Fastening screw (ISO 4762) | E |
| Tightening torque of the fastening screw (Nm) | E |
| Distance between centerlines (mm) | F |
| Distance (mm) | G |
| Mounting length (mm) | C1 |
| Mounting length (mm) | C2 |
| Preload compression (mm) | H |
| Axial recovery force at maximum pretensioning (N) | H |
| Axial* ± (mm) | max. |
| CAD Portal |
| BK5 Series | |
| Rated torque (Nm) | TKN |
| Overall length (mm) | A-2 |
| Inside diameter possible from Ø to Ø H7 (mm) | D1 |
| Inside diameter possible from Ø to Ø H7 (mm) | D2 |
| Outside diameter (mm) | B |
| Moment of inertia (10-3 kgm2) | Jges. |
| Approximate weight (kg) | |
| Torsional stiffness (10³ Nm/rad) | CT |
| Lateral ± (mm) | max. |
| Angular ± (degree) | max. |
| Lateral spring stiffness (N/mm) | Cr |
| Fastening screw (ISO 4762) | E |
| Tightening torque of the fastening screw (Nm) | E |
| Distance between centerlines (mm) | F |
| Distance (mm) | G |
| Mounting length (mm) | C1 |
| Mounting length (mm) | C2 |
| Preload compression (mm) | H |
| Axial recovery force at maximum pretensioning (N) | H |
| Axial* ± (mm) | max. |
| CAD Portal |
| BK5 Series | |
| Rated torque (Nm) | TKN |
| Overall length (mm) | A-2 |
| Inside diameter possible from Ø to Ø H7 (mm) | D1 |
| Inside diameter possible from Ø to Ø H7 (mm) | D2 |
| Outside diameter (mm) | B |
| Moment of inertia (10-3 kgm2) | Jges. |
| Approximate weight (kg) | |
| Torsional stiffness (10³ Nm/rad) | CT |
| Lateral ± (mm) | max. |
| Angular ± (degree) | max. |
| Lateral spring stiffness (N/mm) | Cr |
| Fastening screw (ISO 4762) | E |
| Tightening torque of the fastening screw (Nm) | E |
| Distance between centerlines (mm) | F |
| Distance (mm) | G |
| Mounting length (mm) | C1 |
| Mounting length (mm) | C2 |
| Preload compression (mm) | H |
| Axial recovery force at maximum pretensioning (N) | H |
| Axial* ± (mm) | max. |
| CAD Portal |
| BK5 Series | |
| Rated torque (Nm) | TKN |
| Overall length (mm) | A-2 |
| Inside diameter possible from Ø to Ø H7 (mm) | D1 |
| Inside diameter possible from Ø to Ø H7 (mm) | D2 |
| Outside diameter (mm) | B |
| Moment of inertia (10-3 kgm2) | Jges. |
| Approximate weight (kg) | |
| Torsional stiffness (10³ Nm/rad) | CT |
| Lateral ± (mm) | max. |
| Angular ± (degree) | max. |
| Lateral spring stiffness (N/mm) | Cr |
| Fastening screw (ISO 4762) | E |
| Tightening torque of the fastening screw (Nm) | E |
| Distance between centerlines (mm) | F |
| Distance (mm) | G |
| Mounting length (mm) | C1 |
| Mounting length (mm) | C2 |
| Preload compression (mm) | H |
| Axial recovery force at maximum pretensioning (N) | H |
| Axial* ± (mm) | max. |
| CAD Portal |
