BK1
balgkoppelingen
Specificaties
Design:
⠀
⠀
Temperatuurbereik:
Speling:
Service-life:
Materiaal:
- Balgdeel:
- Naaf:
Piekbelasting:
Snelheid:
Optioneel:
2 naafdelen beide met 6 metrische tapgaten
De binnen -en buitendiameter van de naafdelen zijn concentrisch bewerkt volgens ISO H7
Klant specifieke koppelingen op aanvraag
-30 - 120 °C
Geen
Geen service
Flexibel hoogwaardig roestvrij staal
Staal
Tot 1,5x voorgeschreven waarden
Tot 10.000 rpm, > 10.000 rpm bij fijn uitgebalanceerde versie
Klant specifiek ontwerp, ATEX en cleanroom versie op aanvraag
Omschrijving

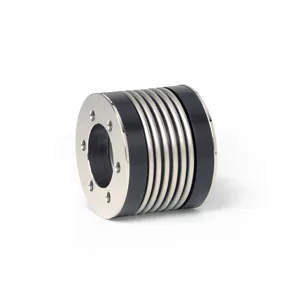

De BK1 balgkoppeling van R+W Couplings is door zijn compacte design zeer geschikt om in kleine ruimtes en speciale applicaties in te bouwen. Door de eenvoudige boutverbinding is de BK1 volledig spelingsvrij. Het design van deze precisie koppeling resulteert in een hoge torsiestijfheid en een rustige loop door de symmetrische krachtverdeling. Dankzij de geforceerd gevormde balgvorm kan het element tegelijkertijd zowel laterale, axiale als angulaire uitlijnfouten opvangen. Zolang deze niet buiten het maximale gebied vallen, zal er geen metaalmoeheid in het balgmateriaal optreden en is de koppeling volkomen vrij van slijtage. Neem voor specifieke vragen over balgkoppelingen contact op met VARIODRIVE.
Specificaties
Design:
⠀
⠀
⠀⠀
Temperatuurbereik:
Speling:
Service-life:
Materiaal:
- Balgdeel:
- Naaf:
Piekbelasting:
Snelheid:
Optioneel:
2 naafdelen beide met 6 metrische tapgaten
De binnen -en buitendiameter van de naafdelen zijn concentrisch bewerkt volgens ISO H7
Klant specifieke koppelingen op aanvraag
-30 - 120 °C
Geen
Geen service
Flexibel hoogwaardig roestvrij staal
Staal
Tot 1,5x voorgeschreven waarden
Tot 10.000 rpm, > 10.000 rpm bij fijn uitgebalanceerde versie
Klant specifiek ontwerp, ATEX en cleanroom versie op aanvraag
Specificaties
Design:
- 2 naafdelen beide met 6 metrische tapgaten
- De binnen- en buitendiameter van de naafdelen zijn concentrisch bewerkt volgens ISO H7
- Klant specifieke koppelingen op aanvraag
Temperatuurbereik: -30 - 120 °C
Speling: Geen
Service-life: Geen service
Materiaal:
- Balgdeel: Flexibel hoogwaardig roestvrij staal
- Naaf: Staal
Piekbelasting: Tot 1,5x voorgeschreven waarden
Snelheid: Tot 10.000 rpm, > 10.000 rpm bij fijn uitgebalanceerde versie
Optioneel: Klant specifiek ontwerp, ATEX en cleanroom versie op aanvraag
Toepassingen
- Machinebouw
- Servo-drive technologie
- Medische technologie
- Luchtvaart
- Renewable energy
- Transportsystemen

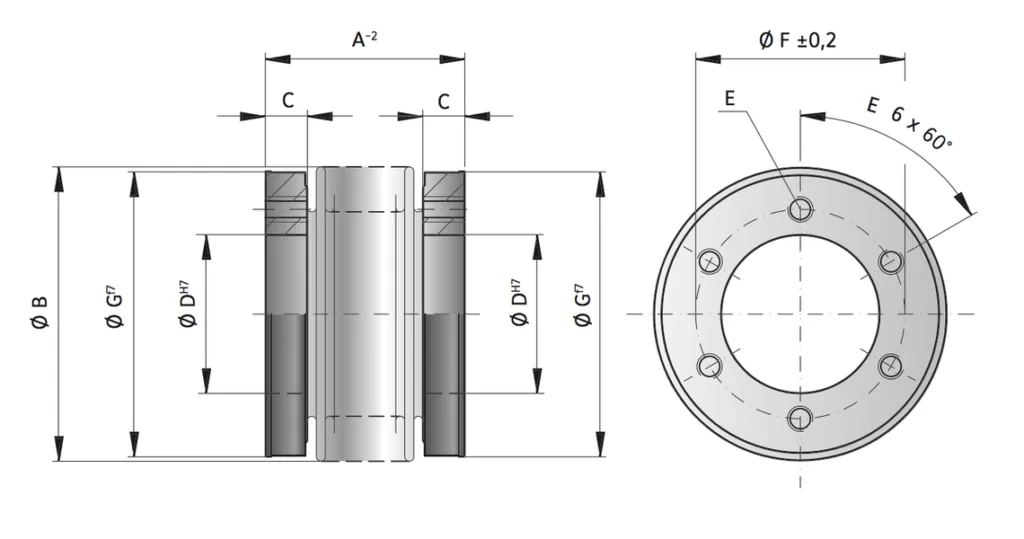

Tabel
| BK1 Series | |
| Rated torque (Nm) | TKN |
| Overall length (mm) | A-2 |
| Outside diameter of bellows (mm) | B |
| Fit length/thread depth (mm) | C |
Inside diameter H7 (mm) | D |
| Fastening threads | E |
| Bolt circle diameter ± 0.2 (mm) | F |
| Outside diameter f7 (mm) | G |
| Moment of inertia (10-3 kgm2) | Jges. |
| Approximate weight (kg) | |
| Torsional stiffness (10³ Nm/rad) | CT |
| Axial ± (mm)) | max. |
| Lateral ± (mm) | max. |
| Angular ± (degree) | max. |
| Axial spring stiffness (N/mm) | Ca |
| Lateral spring stiffness (N/mm) | Cr |
| BK1 Series | |
| Rated torque (Nm) | TKN |
| Overall length (mm) | A-2 |
| Outside diameter of bellows (mm) | B |
| Fit length/thread depth (mm) | C |
Inside diameter H7 (mm) | D |
| Fastening threads | E |
| Bolt circle diameter ± 0.2 (mm) | F |
| Outside diameter f7 (mm) | G |
| Moment of inertia (10-3 kgm2) | Jges. |
| Approximate weight (kg) | |
| Torsional stiffness (10³ Nm/rad) | CT |
| Axial ± (mm)) | max. |
| Lateral ± (mm) | max. |
| Angular ± (degree) | max. |
| Axial spring stiffness (N/mm) | Ca |
| Lateral spring stiffness (N/mm) | Cr |
| CAD Portal |
| BK1 Series | |
| Rated torque (Nm) | TKN |
| Overall length (mm) | A-2 |
| Outside diameter of bellows (mm) | B |
| Fit length/thread depth (mm) | C |
Inside diameter H7 (mm) | D |
| Fastening threads | E |
| Bolt circle diameter ± 0.2 (mm) | F |
| Outside diameter f7 (mm) | G |
| Moment of inertia (10-3 kgm2) | Jges. |
| Approximate weight (kg) | |
| Torsional stiffness (10³ Nm/rad) | CT |
| Axial ± (mm)) | max. |
| Lateral ± (mm) | max. |
| Angular ± (degree) | max. |
| Axial spring stiffness (N/mm) | Ca |
| Lateral spring stiffness (N/mm) | Cr |
| CAD Portal |
| BK1 Series | |
| Rated torque (Nm) | TKN |
| Overall length (mm) | A-2 |
| Outside diameter of bellows (mm) | B |
| Fit length/thread depth (mm) | C |
Inside diameter H7 (mm) | D |
| Fastening threads | E |
| Bolt circle diameter ± 0.2 (mm) | F |
| Outside diameter f7 (mm) | G |
| Moment of inertia (10-3 kgm2) | Jges. |
| Approximate weight (kg) | |
| Torsional stiffness (10³ Nm/rad) | CT |
| Axial ± (mm)) | max. |
| Lateral ± (mm) | max. |
| Angular ± (degree) | max. |
| Axial spring stiffness (N/mm) | Ca |
| Lateral spring stiffness (N/mm) | Cr |
| CAD Portal |
| BK1 Series | |
| Rated torque (Nm) | TKN |
| Overall length (mm) | A-2 |
| Outside diameter of bellows (mm) | B |
| Fit length/thread depth (mm) | C |
Inside diameter H7 (mm) | D |
| Fastening threads | E |
| Bolt circle diameter ± 0.2 (mm) | F |
| Outside diameter f7 (mm) | G |
| Moment of inertia (10-3 kgm2) | Jges. |
| Approximate weight (kg) | |
| Torsional stiffness (10³ Nm/rad) | CT |
| Axial ± (mm)) | max. |
| Lateral ± (mm) | max. |
| Angular ± (degree) | max. |
| Axial spring stiffness (N/mm) | Ca |
| Lateral spring stiffness (N/mm) | Cr |
| CAD Portal |
| BK1 Series | |
| Rated torque (Nm) | TKN |
| Overall length (mm) | A-2 |
| Outside diameter of bellows (mm) | B |
| Fit length/thread depth (mm) | C |
Inside diameter H7 (mm) | D |
| Fastening threads | E |
| Bolt circle diameter ± 0.2 (mm) | F |
| Outside diameter f7 (mm) | G |
| Moment of inertia (10-3 kgm2) | Jges. |
| Approximate weight (kg) | |
| Torsional stiffness (10³ Nm/rad) | CT |
| Axial ± (mm)) | max. |
| Lateral ± (mm) | max. |
| Angular ± (degree) | max. |
| Axial spring stiffness (N/mm) | Ca |
| Lateral spring stiffness (N/mm) | Cr |
| CAD Portal |
| BK1 Series | |
| Rated torque (Nm) | TKN |
| Overall length (mm) | A-2 |
| Outside diameter of bellows (mm) | B |
| Fit length/thread depth (mm) | C |
Inside diameter H7 (mm) | D |
| Fastening threads | E |
| Bolt circle diameter ± 0.2 (mm) | F |
| Outside diameter f7 (mm) | G |
| Moment of inertia (10-3 kgm2) | Jges. |
| Approximate weight (kg) | |
| Torsional stiffness (10³ Nm/rad) | CT |
| Axial ± (mm)) | max. |
| Lateral ± (mm) | max. |
| Angular ± (degree) | max. |
| Axial spring stiffness (N/mm) | Ca |
| Lateral spring stiffness (N/mm) | Cr |
| CAD Portal |
| BK1 Series | |
| Rated torque (Nm) | TKN |
| Overall length (mm) | A-2 |
| Outside diameter of bellows (mm) | B |
| Fit length/thread depth (mm) | C |
Inside diameter H7 (mm) | D |
| Fastening threads | E |
| Bolt circle diameter ± 0.2 (mm) | F |
| Outside diameter f7 (mm) | G |
| Moment of inertia (10-3 kgm2) | Jges. |
| Approximate weight (kg) | |
| Torsional stiffness (10³ Nm/rad) | CT |
| Axial ± (mm)) | max. |
| Lateral ± (mm) | max. |
| Angular ± (degree) | max. |
| Axial spring stiffness (N/mm) | Ca |
| Lateral spring stiffness (N/mm) | Cr |
| CAD Portal |
| BK1 Series | |
| Rated torque (Nm) | TKN |
| Overall length (mm) | A-2 |
| Outside diameter of bellows (mm) | B |
| Fit length/thread depth (mm) | C |
Inside diameter H7 (mm) | D |
| Fastening threads | E |
| Bolt circle diameter ± 0.2 (mm) | F |
| Outside diameter f7 (mm) | G |
| Moment of inertia (10-3 kgm2) | Jges. |
| Approximate weight (kg) | |
| Torsional stiffness (10³ Nm/rad) | CT |
| Axial ± (mm)) | max. |
| Lateral ± (mm) | max. |
| Angular ± (degree) | max. |
| Axial spring stiffness (N/mm) | Ca |
| Lateral spring stiffness (N/mm) | Cr |
| CAD Portal |
| BK1 Series | |
| Rated torque (Nm) | TKN |
| Overall length (mm) | A-2 |
| Outside diameter of bellows (mm) | B |
| Fit length/thread depth (mm) | C |
Inside diameter H7 (mm) | D |
| Fastening threads | E |
| Bolt circle diameter ± 0.2 (mm) | F |
| Outside diameter f7 (mm) | G |
| Moment of inertia (10-3 kgm2) | Jges. |
| Approximate weight (kg) | |
| Torsional stiffness (10³ Nm/rad) | CT |
| Axial ± (mm)) | max. |
| Lateral ± (mm) | max. |
| Angular ± (degree) | max. |
| Axial spring stiffness (N/mm) | Ca |
| Lateral spring stiffness (N/mm) | Cr |
| CAD Portal |
| BK1 Series | |
| Rated torque (Nm) | TKN |
| Overall length (mm) | A-2 |
| Outside diameter of bellows (mm) | B |
| Fit length/thread depth (mm) | C |
Inside diameter H7 (mm) | D |
| Fastening threads | E |
| Bolt circle diameter ± 0.2 (mm) | F |
| Outside diameter f7 (mm) | G |
| Moment of inertia (10-3 kgm2) | Jges. |
| Approximate weight (kg) | |
| Torsional stiffness (10³ Nm/rad) | CT |
| Axial ± (mm)) | max. |
| Lateral ± (mm) | max. |
| Angular ± (degree) | max. |
| Axial spring stiffness (N/mm) | Ca |
| Lateral spring stiffness (N/mm) | Cr |
| CAD Portal |
| BK1 Series | |
| Rated torque (Nm) | TKN |
| Overall length (mm) | A-2 |
| Outside diameter of bellows (mm) | B |
| Fit length/thread depth (mm) | C |
Inside diameter H7 (mm) | D |
| Fastening threads | E |
| Bolt circle diameter ± 0.2 (mm) | F |
| Outside diameter f7 (mm) | G |
| Moment of inertia (10-3 kgm2) | Jges. |
| Approximate weight (kg) | |
| Torsional stiffness (10³ Nm/rad) | CT |
| Axial ± (mm)) | max. |
| Lateral ± (mm) | max. |
| Angular ± (degree) | max. |
| Axial spring stiffness (N/mm) | Ca |
| Lateral spring stiffness (N/mm) | Cr |
| CAD Portal |
