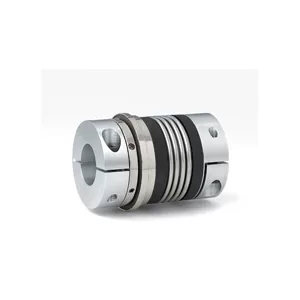

SK2
Veiligheidskoppelingen
Specificaties
Design:
Systemen:
⠀
Reactietijd ontkoppelen:
Temperatuurbereik:
Service-life:
Tolerantie:
Materiaal:
- Balgdeel:
- Veiligheidsdeel:
- Naaf:
Optioneel:
2 klemnaven inclusief radiaal schroef
Single position (standard), multi position, load holding, full disengagement
1 – 3 msec
-30 tot 100 °C
Geen service
0.01 - 0.05 mm
⠀
Zeer flexibel hoogwaardig roestvrij staal
Hoogwaardig gehard staal
≤ 80 serie aluminium en ≥ 150 serie staal
Klant specifiek ontwerp, RVS, ATEX, limit switch, stelsleutel
Omschrijving
De SK2 veiligheidskoppeling van R+W Couplings is eenvoudig te (de)monteren. Daarnaast bezit deze precisie koppeling een snelle en accurate ontkoppeldetectie en ontkoppeling. Door de frictie klemverbinding is deze veiligheidskoppeling absoluut spelingsvrij. Het maximaal koppel is bij de SK2 koppeling tevens handmatig te verstellen met een stelsleutel. Deze sleutel is apart te bestellen. Dankzij de geforceerd gevormde balgvorm kan het element tegelijkertijd zowel laterale, axiale als angulaire uitlijnfouten opvangen. Voor specifieke vragen over veiligheidskoppeling of andere precisie koppelingen neem dan contact op met VARIODRIVE.
Specificaties
Design:
Systemen:
⠀
Reactietijd ontkoppelen:
Temperatuurbereik:
Service-life:
Tolerantie:
Materiaal:
- Balgdeel:
- Veiligheidsdeel:
- Naaf:
Optioneel:
2 klemnaven inclusief radiaal schroef
Single position (standard), multi position, load holding, full disengagement
⠀
1 – 3 msec
-30 tot 100 °C
Geen service
0.01 - 0.05 mm
⠀
Zeer flexibel hoogwaardig roestvrij staal
Hoogwaardig gehard staal
≤ 80 serie aluminium en ≥ 150 serie staal
Klant specifiek ontwerp, RVS, ATEX, limit switch, stelsleutel
Specificaties
Design: 2 klemnaven inclusief radiaal schroef
Systemen: Single position (standard), multi position, load holding, full disengagement
Reactietijd ontkoppelen: 1 – 3 msec
Temperatuurbereik: -30 tot 100 °C
Service-life: Geen service
Tolerantie: 0.01 tot 0.05 mm
Materiaal:
- Balgdeel: Zeer flexibel hoogwaardig roestvrij staal
- Veiligheidsdeel: Hoogwaardig gehard staal
- Naaf: ≤ 80 serie aluminium en ≥ 150 serie staal
Optioneel: Klant specifiek ontwerp, RVS, ATEX, limit switch, stelsleutel
Toepassingen
- Machine gereedschap
- Verpakkingsmachines
- Machines voor metaalbewerking
- Test stands
- Pomp aandrijvingen
- Assemblage systemen

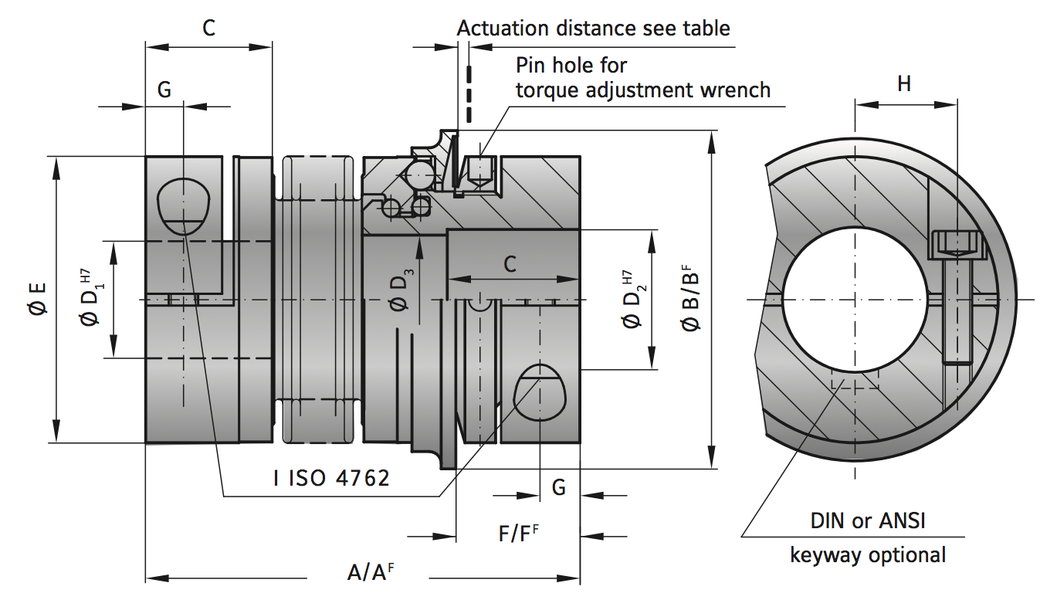

Tabel
