LP4
heavy duty lamellenkoppelingen
Specificaties
Design:
⠀
Speling:
Onderhoud:
Materiaal:
- Lamellen:
- Naven en as:
Optioneel:
Precisie bewerkte naaf met conisch klemring en gemonteerd met zeer sterke schroeven en bussen
Spelingvrij
Onderhoudsvrij
⠀
Hoog elastisch veerstaal
Hoogwaardig staal
Klant specifiek ontwerp en ATEX
Omschrijving

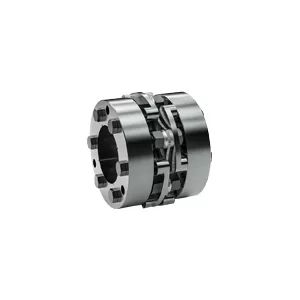

De LP4 heavy duty lamellenkoppeling van R+W Couplings is een single flex design en is spelingvrij voor omkeerbare belasting. De conische klemring biedt de koppeling een hoge klemkracht. Het design heeft een hoge torsiestijfheid en maakt deze lamellenkoppeling zeer geschikt voor hoge snelheid, omgekeerde en intermitterende belasting. Deze industrie lamellenkoppeling wordt toegepast voor oneindlige levensduur bij extreme omstandigheden. Neem voor specifieke vragen over lamellenkoppelingen of andere industrie koppelingen contact op met VARIODRIVE
Specificaties
Design:
⠀
Speling:
Onderhoud:
Materiaal:
- Lamellen:
- Naven en as:
Optioneel:
Precisie bewerkte naaf met conisch klemring en gemonteerd met zeer sterke schroeven en bussen
Spelingvrij
Onderhoudsvrij
Hoog elastisch veerstaal
Hoogwaardig staal
Klant specifiek ontwerp en ATEX
Specificaties
Design: Precisie bewerkte naaf met conisch klemring en gemonteerd met zeer sterke schroeven en bussen
Speling: Spelingsvrij
Onderhoud: Onderhoudsvrij
Materiaal:
- Lamellen: Hoog elastisch veerstaal
- Naven en as: Hoogwaardig staal
Optioneel: Klant specifiek ontwerp en ATEX
Toepassingen
- Papiermachines
- Staalwals installaties
- Test stands
- Generatoren
- Bulk handling
- Centrifuges
- Aandrijving voor koeltorens
- Compressoren
- Printmachines
Datasheets
Manuals

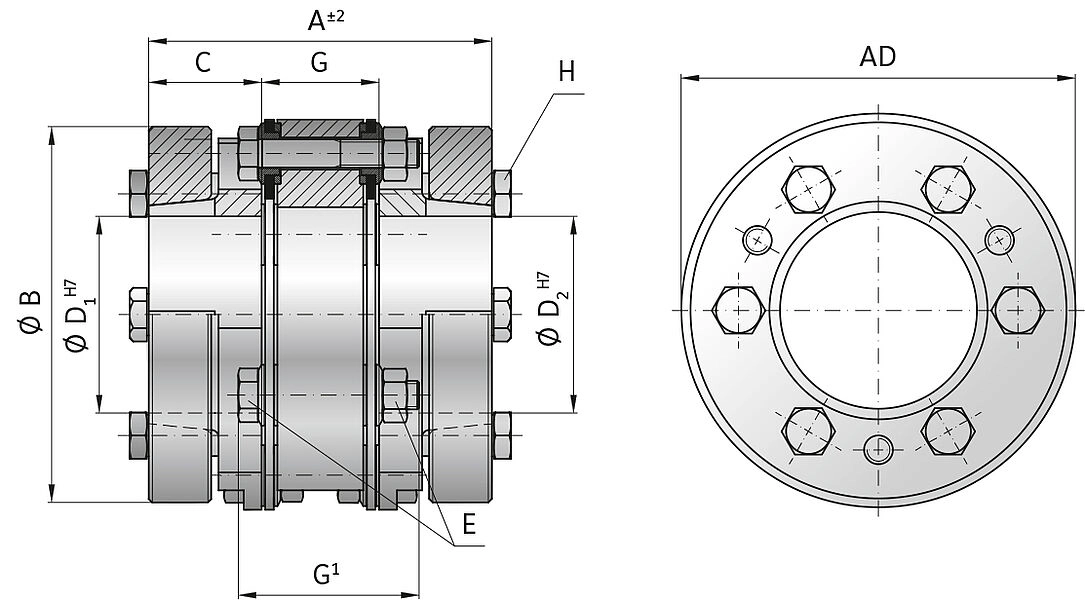

Tabel
| LP4 Series | |
| Elastomer insert type | |
| Rated torque (Nm) | TKN |
| Maximum torque (Nm) | TKmax |
| Overall length | A |
| Outside diameter (mm) | ø AD |
| Outside diameter of hub (mm) | ø B |
| Fit length (mm) | C |
Inside diameter possible from Ø to Ø H7 (mm) | D1/2 |
| Fastening screw (ISO 4017) Nut (DIN 4032) | E |
| Tightening torque of the fastening screw (Nm) | |
| Distance (mm) | G |
| Overall length (mm) | G1 |
| Fastening screw (ISO 4017) | H |
| Tightening torque of the fastening screw (Nm) | H |
| Moment of inertia (10-3 kgm2) | Jges. |
| Approximate weight (kg) | |
| Torsional stiffness (10³ Nm/rad) | CT |
| Axial ± (mm) | |
| Lateral ± (mm) | |
| Angular ± (degree) | max. |
| Speed max. (rpm) | |
| maximum speed (balanced) (1/min.) | |
| Material | |
| LP4 Series | |
| Elastomer insert type | |
| Rated torque (Nm) | TKN |
| Maximum torque (Nm) | TKmax |
| Overall length | A |
| Outside diameter (mm) | ø AD |
| Outside diameter of hub (mm) | ø B |
| Fit length (mm) | C |
Inside diameter possible from Ø to Ø H7 (mm) | D1/2 |
| Fastening screw (ISO 4017) Nut (DIN 4032) | E |
| Tightening torque of the fastening screw (Nm) | |
| Distance (mm) | G |
| Overall length (mm) | G1 |
| Fastening screw (ISO 4017) | H |
| Tightening torque of the fastening screw (Nm) | H |
| Moment of inertia (10-3 kgm2) | Jges. |
| Approximate weight (kg) | |
| Torsional stiffness (10³ Nm/rad) | CT |
| Axial ± (mm) | |
| Lateral ± (mm) | |
| Angular ± (degree) | max. |
| Speed max. (rpm) | |
| maximum speed (balanced) (1/min.) | |
| Material | |
| CAD Portal |
