Metal bellows couplings

The BX6 heavy-duty bellows coupling is highly suitable for transmitting high torque. Additionally, the BX6 has a compact design and is easy to assemble and disassemble. This industrial coupling is torsionally rigid and, due to the use of a friction clamp connection, completely free of play. Thanks to the force-formed bellows shape, the element can simultaneously accommodate lateral, axial, and angular misalignments. As long as they do not exceed the maximum range, there will be no metal fatigue in the bellows material, and the Heavy Duty bellows coupling will be completely free of wear. This industrial coupling can be applied wherever precision transmission is required. For specific inquiries about bellows couplings or other industrial couplings, please contact VARIODRIVE.

Bellows coupling with tapered clamp hub
Nom. Torque
10-100.000 Nm
tot 10.000 rpm
Temperature range
-40 tot +300 oC
Bellows material
Stainless steel
Hub material
Peak load
Tot 1,5x nom. Torque
no service
ATEX, Clean room versie

  • ATEX instructies
  • Datasheet BX6
  • Manual BK/MK koppelingen

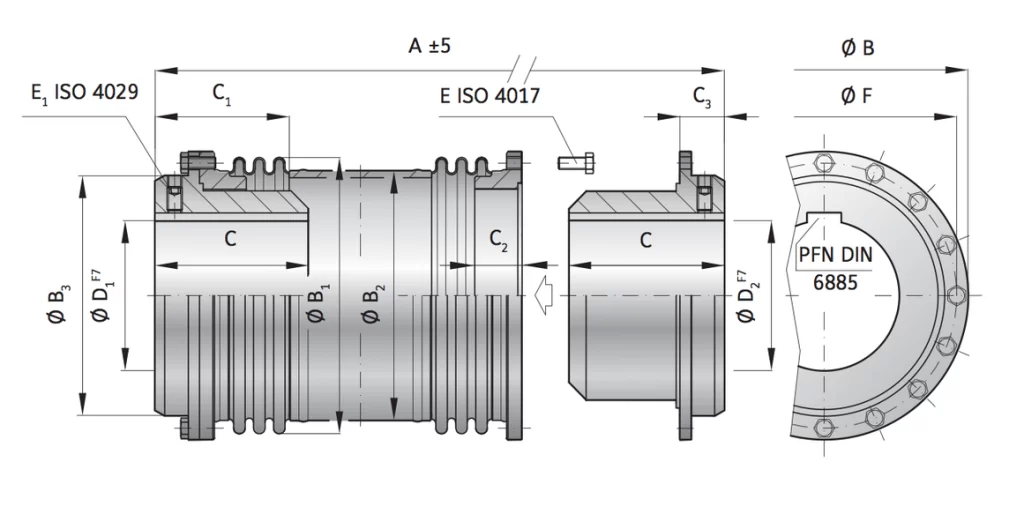

BX6 drawing
