Specificaties

Design:

Temperatuurbereik:
Speling:
Service-life:
Materiaal:
- Balgdeel:
- Naaf:
Snelheid:
- Standaard:
- Optie 1:
- Optie 2:
Optioneel:

Koppeling met klemnaaf aan beide zijden. Iedere klemnaaf is uitgevoerd met één ISO 4762 klemschroef
-30 - 100 °C
Geen
Geen service

Zeer flexibel hoogwaardig roestvrij staal
Zie tabel

Tot 10.000 rpm
> 10.000 rpm bij fijn uitgebalanceerde versie
> 30.000 rpm bij uitgebalanceerde versie G = 2.5 (zie tabel)
Klant specifiek ontwerp, ATEX en cleanroom versie op aanvraag

Omschrijving

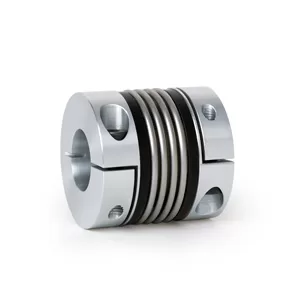

De BKC balgkoppeling van R+W Couplings heeft een economisch interessant design en is door klemnaven eenvoudig te monteren. Zijn korte lengte maakt deze koppeling zeer geschikt om in te bouwen in compacte ruimtes. Daarnaast bezit de BKC koppeling een laag massatraagheidsmoment, kan deze hoge snelheden aan en door het gebruik van frictie klemverbinding is deze precisie koppeling absoluut spelingsvrij. Dankzij de geforceerd gevormde balgvorm kan het element tegelijkertijd zowel laterale, axiale als angulaire uitlijnfouten opvangen. Zolang deze niet buiten het maximale gebied vallen, zal er geen metaalmoeheid in het balgmateriaal optreden en is de koppeling volkomen vrij van slijtage. Neem voor specifieke vragen over balgkoppelingen contact op met VARIODRIVE.

Specificaties

Design:

Temperatuurbereik:
Speling:
Service-life:
Materiaal:
- Balgdeel:
- Naaf:
Snelheid:
- Standaard:
- Optie 1:
- Optie 2:
Optioneel:

Koppeling met klemnaaf aan beide zijden. Iedere klemnaaf is uitgevoerd met één ISO 4762 klemschroef
-30 - 100 °C
Geen
Geen service

Zeer flexibel hoogwaardig roestvrij staal
Zie tabel

Tot 10.000 rpm
> 10.000 rpm bij fijn uitgebalanceerde versie
> 30.000 rpm bij uitgebalanceerde versie G = 2.5 (zie tabel)
Klant specifiek ontwerp, ATEX en cleanroom versie op aanvraag

Specificaties

Design: Koppeling met klemnaaf aan beide zijden. Iedere klemnaaf is uitgevoerd met één ISO 4762 klemschroef
Temperatuurbereik: -30 - 100 °C
Speling: Geen
Service-life: Geen service
Materiaal:
- Balgdeel:
Zeer flexibel hoogwaardig roestvrij staal
- Naaf: Zie tabel
Snelheid:
- Standaard: Tot 10.000 rpm
- Optie 1: > 10.000 rpm bij fijn uitgebalanceerde versie
- Optie 2: >30.000 rpm bij uitgebalanceerde versie G = 2.5 (zie tabel)
Optioneel:
Klant specifiek ontwerp, ATEX en cleanroom versie op aanvraag

Toepassingen

  • Machinebouw
  • Servo-drive technologie
  • Medische technologie
  • Luchtvaart
  • Renewable energy
  • Transportsystemen
BKC Serien15

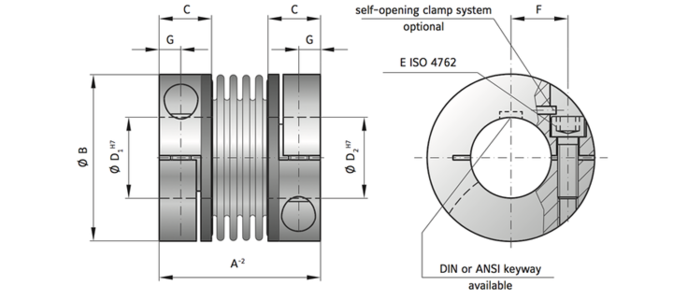

Rated torque (Nm)TKN15
Overall length (mm)A-248
Fit length (mm)C16,5
Inside diameter possible from Ø to Ø H7 (mm)
D1/D28-28
Outside diameter (mm)B49
Moment of inertia (10-3 kgm2)Jges.0,05
Approximate weight (kg)0,13
Torsional stiffness (10³ Nm/rad)CT23
Axial ± (mm))max.1
Lateral ± (mm)max.0,2
Angular ± (degree)max.1
Axial spring stiffness (N/mm)Ca30
Lateral spring stiffness (N/mm)Cr315
Fastening screw (ISO 4762)EM5
Tightening torque of the fastening screw (Nm)E8
Distance between centerlines (mm)F17,5
Distance (mm)G6,5
Hub materialAluminium
Speed max. with G = 2.5 balancing (min-1)80000
15
CAD
BKC Serien30
Rated torque (Nm)TKN30
Overall length (mm)A-258
Fit length (mm)C21
Inside diameter possible from Ø to Ø H7 (mm)
D1/D212-32
Outside diameter (mm)B56
Moment of inertia (10-3 kgm2)Jges.0,1
Approximate weight (kg)0,21
Torsional stiffness (10³ Nm/rad)CT31
Axial ± (mm))max.1
Lateral ± (mm)max.0,2
Angular ± (degree)max.1
Axial spring stiffness (N/mm)Ca50
Lateral spring stiffness (N/mm)Cr366
Fastening screw (ISO 4762)EM6
Tightening torque of the fastening screw (Nm)E15
Distance between centerlines (mm)F20
Distance (mm)G7,5
Hub materialAluminium
Speed max. with G = 2.5 balancing (min-1)70000
30
CAD
BKC Serien60
Rated torque (Nm)TKN60
Overall length (mm)A-267
Fit length (mm)C23
Inside diameter possible from Ø to Ø H7 (mm)
D1/D214-35
Outside diameter (mm)B66
Moment of inertia (10-3 kgm2)Jges.0,26
Approximate weight (kg)0,37
Torsional stiffness (10³ Nm/rad)CT72
Axial ± (mm))max.1,5
Lateral ± (mm)max.0,2
Angular ± (degree)max.1
Axial spring stiffness (N/mm)Ca67
Lateral spring stiffness (N/mm)Cr679
Fastening screw (ISO 4762)EM8
Tightening torque of the fastening screw (Nm)E40
Distance between centerlines (mm)F23
Distance (mm)G9,5
Hub materialAluminium
Speed max. with G = 2.5 balancing (min-1)60000
60
CAD
BKC Serien150
Rated torque (Nm)TKN150
Overall length (mm)A-278
Fit length (mm)C27,5
Inside diameter possible from Ø to Ø H7 (mm)
D1/D219-42
Outside diameter (mm)B82
Moment of inertia (10-3 kgm2)Jges.0,65
Approximate weight (kg)0,72
Torsional stiffness (10³ Nm/rad)CT141
Axial ± (mm))max.2
Lateral ± (mm)max.0,2
Angular ± (degree)max.1
Axial spring stiffness (N/mm)Ca77
Lateral spring stiffness (N/mm)Cr960
Fastening screw (ISO 4762)EM10
Tightening torque of the fastening screw (Nm)E75
Distance between centerlines (mm)F27
Distance (mm)G11
Hub materialAluminium
Speed max. with G = 2.5 balancing (min-1)50000
150
CAD
BKC Serien300
Rated torque (Nm)TKN300
Overall length (mm)A-294
Fit length (mm)C34
Inside diameter possible from Ø to Ø H7 (mm)
D1/D224-60
Outside diameter (mm)B110
Moment of inertia (10-3 kgm2)Jges.6,3
Approximate weight (kg)3,26
Torsional stiffness (10³ Nm/rad)CT157
Axial ± (mm))max.2
Lateral ± (mm)max.0,2
Angular ± (degree)max.1
Axial spring stiffness (N/mm)Ca112
Lateral spring stiffness (N/mm)Cr2940
Fastening screw (ISO 4762)EM12
Tightening torque of the fastening screw (Nm)E120
Distance between centerlines (mm)F39
Distance (mm)G13
Hub materialSteel
Speed max. with G = 2.5 balancing (min-1)40000
300
CAD
BKC Serien500
Rated torque (Nm)TKN500
Overall length (mm)A-2100
Fit length (mm)C34
Inside diameter possible from Ø to Ø H7 (mm)
D1/D232-75
Outside diameter (mm)B123
Moment of inertia (10-3 kgm2)Jges.9
Approximate weight (kg)3,52
Torsional stiffness (10³ Nm/rad)CT290
Axial ± (mm))max.2,5
Lateral ± (mm)max.0,2
Angular ± (degree)max.1
Axial spring stiffness (N/mm)Ca72
Lateral spring stiffness (N/mm)Cr2200
Fastening screw (ISO 4762)EM12
Tightening torque of the fastening screw (Nm)E125
Distance between centerlines (mm)F45
Distance (mm)G13
Hub materialSteel
Speed max. with G = 2.5 balancing (min-1)30000
500
CAD
