LPA
heavy duty lamellenkoppelingen
Specificaties
Design:
⠀
⠀
Speling:
Onderhoud:
Materiaal:
- Lamellen:
- Naven en as:
Optioneel:
Precisie bewerkte naven met spiebaan en gemonteerd op de corrosie bestendige lamellen met zeer sterke schroeven en bussen
Zeer geringe speling
Onderhoudsvrij
⠀
Hoog elastisch veerstaal
Hoogwaardig staal
Klant specifiek ontwerp en ATEX

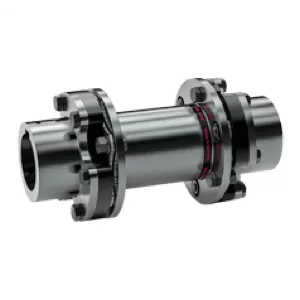

Omschrijving
De LPA heavy duty lamellenkoppeling van R+W Couplings voldoet aan de eisen API610 – metrisch (optioneel API 671) en is gebalanceerd volgens ANSI/AGMA 9000 klasse 9. Door het design van de LPA koppeling is de tussenas eenvoudig te (de)monteren. De lamellenkoppeling heeft een integrale beveiliging indien er breuk in het lamellenpakket optreed. Deze industrie lamellenkoppeling wordt toegepast voor oneindlige levensduur bij extreme omstandigheden. Neem voor specifieke vragen over lamellenkoppelingen of andere industrie koppelingen contact op met VARIODRIVE.
Specificaties
Design:
⠀
Speling:
Onderhoud:
Materiaal:
- Lamellen:
- Naven en as:
Optioneel:
Precisie bewerkte naven met spiebaan en gemonteerd op de corrosie bestendige lamellen met zeer sterke schroeven en bussen
Zeer geringe speling
Onderhoudsvrij
⠀
Hoog elastisch veerstaal
Hoogwaardig staal
Klant specifiek ontwerp en ATEX
Specificaties
Design: Precisie bewerkte naven met spiebaan en gemonteerd op de corrosie bestendige lamellen met zeer sterke schroeven en bussen
Speling: Zeer geringe speling
Onderhoud: Onderhoudsvrij
Materiaal:
- Lamellen: Hoog elastisch veerstaal
- Naven en as: Hoogwaardig staal
Optioneel: Klant specifiek ontwerp en ATEX
Toepassingen
- Papiermachines
- Staalwals installaties
- Test stands
- Generatoren
- Bulk handling
- Centrifuges
- Aandrijving voor koeltorens
- Compressoren
- Printmachines

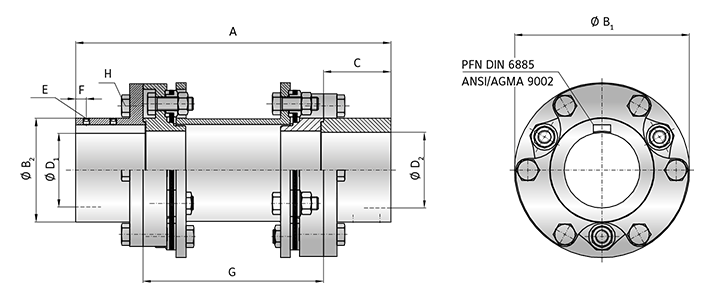

Tabel
| LPA Series | |
| Rated torque (kW/100rpm) | PKN |
| Rated torque (Nm) | TKN |
| Maximum torque (Nm) | TKmax |
| Overall length | A |
| Outside diameter (mm) | B1 |
| Outside diameter of hub (mm) | B2 |
| Fit length (mm) | C |
Inside diameter possible from Ø to Ø H7 (mm) | D1/2 |
| Set screws (DIN 916) | E |
| Distance (mm) | F |
| Spacer length (mm) | G |
| Assembly screw (ISO 4762) Nut (DIN 934) | H |
| Tightening torque of the fastening screw (Nm) | |
| Moment of inertia (10-3 kgm2) | |
| Approximate weight (kg) | |
| Axial ± (mm) | |
| Lateral ± (mm) | |
| Angular ± (degree) | max. |
| Speed standard (min-1) | |
| maximum speed (balanced) (1/min.) | |
| Material | |
| LPA Series | |
| Rated torque (kW/100rpm) | PKN |
| Rated torque (Nm) | TKN |
| Maximum torque (Nm) | TKmax |
| Overall length | A |
| Outside diameter (mm) | B1 |
| Outside diameter of hub (mm) | B2 |
| Fit length (mm) | C |
Inside diameter possible from Ø to Ø H7 (mm) | D1/2 |
| Set screws (DIN 916) | E |
| Distance (mm) | F |
| Spacer length (mm) | G |
| Assembly screw (ISO 4762) Nut (DIN 934) | H |
| Tightening torque of the fastening screw (Nm) | |
| Moment of inertia (10-3 kgm2) | |
| Approximate weight (kg) | |
| Axial ± (mm) | |
| Lateral ± (mm) | |
| Angular ± (degree) | max. |
| Speed standard (min-1) | |
| maximum speed (balanced) (1/min.) | |
| Material | |
| CAD Portal |
| LPA Series | |
| Rated torque (kW/100rpm) | PKN |
| Rated torque (Nm) | TKN |
| Maximum torque (Nm) | TKmax |
| Overall length | A |
| Outside diameter (mm) | B1 |
| Outside diameter of hub (mm) | B2 |
| Fit length (mm) | C |
Inside diameter possible from Ø to Ø H7 (mm) | D1/2 |
| Set screws (DIN 916) | E |
| Distance (mm) | F |
| Spacer length (mm) | G |
| Assembly screw (ISO 4762) Nut (DIN 934) | H |
| Tightening torque of the fastening screw (Nm) | |
| Moment of inertia (10-3 kgm2) | |
| Approximate weight (kg) | |
| Axial ± (mm) | |
| Lateral ± (mm) | |
| Angular ± (degree) | max. |
| Speed standard (min-1) | |
| maximum speed (balanced) (1/min.) | |
| Material | |
| CAD Portal |
| LPA Series | |
| Rated torque (kW/100rpm) | PKN |
| Rated torque (Nm) | TKN |
| Maximum torque (Nm) | TKmax |
| Overall length | A |
| Outside diameter (mm) | B1 |
| Outside diameter of hub (mm) | B2 |
| Fit length (mm) | C |
Inside diameter possible from Ø to Ø H7 (mm) | D1/2 |
| Set screws (DIN 916) | E |
| Distance (mm) | F |
| Spacer length (mm) | G |
| Assembly screw (ISO 4762) Nut (DIN 934) | H |
| Tightening torque of the fastening screw (Nm) | |
| Moment of inertia (10-3 kgm2) | |
| Approximate weight (kg) | |
| Axial ± (mm) | |
| Lateral ± (mm) | |
| Angular ± (degree) | max. |
| Speed standard (min-1) | |
| maximum speed (balanced) (1/min.) | |
| Material | |
| CAD Portal |
| LPA Series | |
| Rated torque (kW/100rpm) | PKN |
| Rated torque (Nm) | TKN |
| Maximum torque (Nm) | TKmax |
| Overall length | A |
| Outside diameter (mm) | B1 |
| Outside diameter of hub (mm) | B2 |
| Fit length (mm) | C |
Inside diameter possible from Ø to Ø H7 (mm) | D1/2 |
| Set screws (DIN 916) | E |
| Distance (mm) | F |
| Spacer length (mm) | G |
| Assembly screw (ISO 4762) Nut (DIN 934) | H |
| Tightening torque of the fastening screw (Nm) | |
| Moment of inertia (10-3 kgm2) | |
| Approximate weight (kg) | |
| Axial ± (mm) | |
| Lateral ± (mm) | |
| Angular ± (degree) | max. |
| Speed standard (min-1) | |
| maximum speed (balanced) (1/min.) | |
| Material | |
| CAD Portal |
| LPA Series | |
| Rated torque (kW/100rpm) | PKN |
| Rated torque (Nm) | TKN |
| Maximum torque (Nm) | TKmax |
| Overall length | A |
| Outside diameter (mm) | B1 |
| Outside diameter of hub (mm) | B2 |
| Fit length (mm) | C |
Inside diameter possible from Ø to Ø H7 (mm) | D1/2 |
| Set screws (DIN 916) | E |
| Distance (mm) | F |
| Spacer length (mm) | G |
| Assembly screw (ISO 4762) Nut (DIN 934) | H |
| Tightening torque of the fastening screw (Nm) | |
| Moment of inertia (10-3 kgm2) | |
| Approximate weight (kg) | |
| Axial ± (mm) | |
| Lateral ± (mm) | |
| Angular ± (degree) | max. |
| Speed standard (min-1) | |
| maximum speed (balanced) (1/min.) | |
| Material | |
| CAD Portal |
