Specificaties

Design:


Temperatuurbereik:
Speling:
Service-life:
Toleranties:
Materiaal:
- Balgdeel:
- As:
- Klemnaaf:
Snelheid:
Optioneel:

Gedeelde klemnaaf aan beide zijden, uitgevoerd met één radiale schroef. As uitgevoerd in CFK als cardan ophanging met klemnaaf.
-30 tot 100 °C
Geen
Geen service
0.01 - 0.05 mm

Zeer flexibel hoogwaardig roestvrij staal
CFK
≤ serie 60 aluminium en  ≥ serie 150 staal
Afhankelijk van de lengte. Neem contact met ons op.
Klant specifiek ontwerp, RVS en Atex

Omschrijving

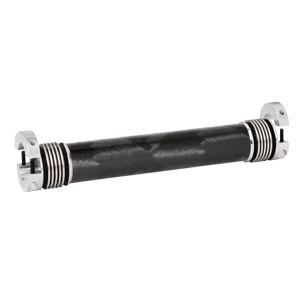

De ZAL tussenas van R+W Couplings kan met zijn lange design grote afstanden standaard tot 6 meter overbruggen en is gemakkelijk te (de)monteren. Door het gebruik van CFK is de as zeer licht van gewicht en heeft een bijzonder lage massatraagheid. Daarnaast is de ZAL tussenas torsie stijf en door het gebruik van een frictie klemverbinding is de precisie koppeling absoluut spelingvrij. Dankzij de geforceerd gevormde balgvorm kan het element tegelijkertijd zowel laterale, axiale en angulaire uitlijnfouten opvangen. Zolang deze niet buiten het maximale gebied vallen, zal er geen metaalmoeheid in het balgmateriaal optreden en is de askoppeling volkomen vrij van slijtage. De ZAL askoppeling is zeer geschikt voor applicaties met hoge snelheden. Voor specifieke vragen over tussenassen of andere precisie koppelingen neem dan contact op met VARIODRIVE.

Specificaties

Design:

Temperatuurbereik:
Speling:
Service-life:
Toleranties:
Materiaal:
- Balgdeel:
- As:
- Klemnaaf:
Snelheid:
Optioneel:

Gedeelde klemnaaf aan beide zijden, uitgevoerd met één radiale schroef. As uitgevoerd in CFK als cardan ophanging met klemnaaf.
-30 tot 100 °C
Geen
Geen service
0.01 - 0.05 mm

Zeer flexibel hoogwaardig roestvrij staal
CFK
≤ serie 60 aluminium en  ≥ serie 150 staal
Afhankelijk van de lengte. Neem contact met ons op.
Klant specifiek ontwerp, RVS en Atex

Specificaties

Design: Gedeelde klemnaaf aan beide zijden, uitgevoerd met één radiale schroef. As uitgevoerd in CFK als cardan ophanging met klemnaaf.
Temperatuurbereik: -30 tot 100 °C
Speling: Geen
Service-life: Geen service
Toleranties: 0.01 - 0.05 mm
Materiaal:
- Balgdeel: Zeer flexibel hoogwaardig roestvrij staal
- As: CFK
- Klemnaaf: ≤ serie 60 aluminium en  ≥ serie 150 staal
Snelheid: Afhankelijk van de lengte. Neem contact met ons op.
Optioneel: Klant specifiek ontwerp, RVS en Atex

Toepassingen

  • Material handeling
  • Printtechnologie
  • Verpakkingsmachines
  • Theater automatisering
  • Gantry systemen
  • Schroef spindel systemen

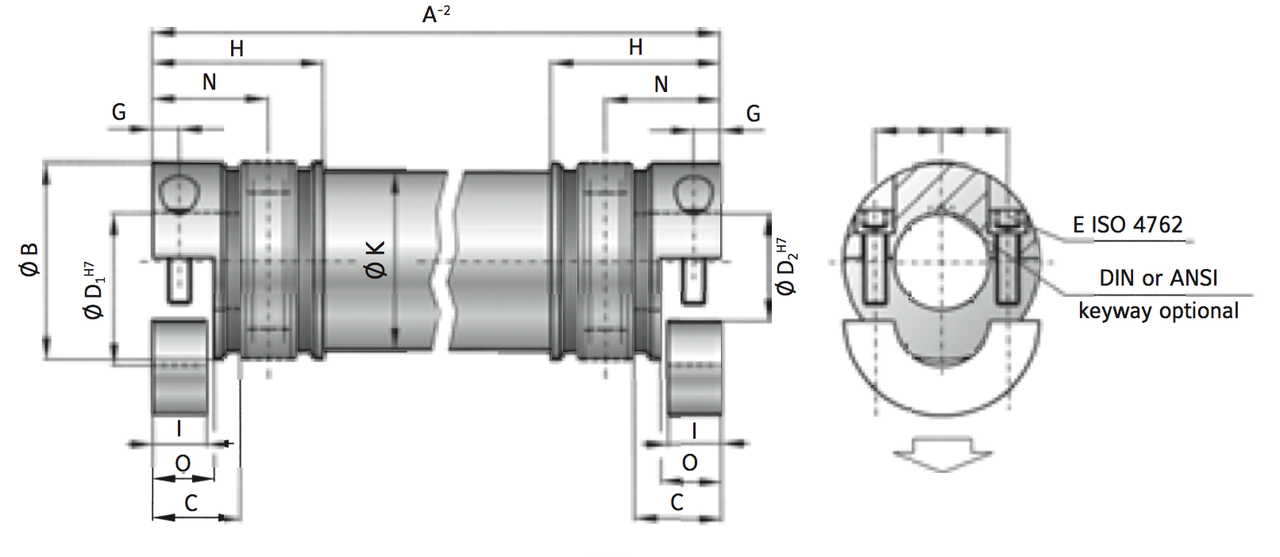

ZAL Serien10
Rated torque (Nm)TKN10
Overall length min. to max. (mm)A-2100 - 6000
Fit length (mm)C16
Inside diameter possible from Ø to Ø H7 (mm)
D1/25 - 20
Max. inside diameter clamping hub (mm)Dmax24
Outside diameter clamping hub (mm)B40
Outside diameter of tube (mm)K35
Fastening screw (ISO 4762)EM4
Tightening torque of the fastening screw (Nm)E5
Distance between centerlines (mm)F15
Distance (mm)G5
Length (mm)O11,5
Clamping length (mm)I10
With keyway max. Ø H7 (mm)D1/217
Length bellows body (mm)H39,5
Shaft average value (mm)N25
10
CAD
ZAL Serien30
Rated torque (Nm)TKN30
Overall length min. to max. (mm)A-2130 - 6000
Fit length (mm)C27
Inside diameter possible from Ø to Ø H7 (mm)
D1/210 - 28
Max. inside diameter clamping hub (mm)Dmax30
Outside diameter clamping hub (mm)B55
Outside diameter of tube (mm)K50
Fastening screw (ISO 4762)EM6
Tightening torque of the fastening screw (Nm)E15
Distance between centerlines (mm)F19
Distance (mm)G7,5
Length (mm)O17
Clamping length (mm)I15
With keyway max. Ø H7 (mm)D1/223
Length bellows body (mm)H52
Shaft average value (mm)N34
30
CAD
ZAL Serien60
Rated torque (Nm)TKN60
Overall length min. to max. (mm)A-2160 - 6000
Fit length (mm)C31
Inside diameter possible from Ø to Ø H7 (mm)
D1/212 - 32
Max. inside diameter clamping hub (mm)Dmax32
Outside diameter clamping hub (mm)B66
Outside diameter of tube (mm)K60
Fastening screw (ISO 4762)EM8
Tightening torque of the fastening screw (Nm)E40
Distance between centerlines (mm)F23
Distance (mm)G9,5
Length (mm)O21
Clamping length (mm)I19
With keyway max. Ø H7 (mm)D1/229
Length bellows body (mm)H64
Shaft average value (mm)N41
60
CAD
ZAL Serien150
Rated torque (Nm)TKN150
Overall length min. to max. (mm)A-2180 - 6000
Fit length (mm)C34,5
Inside diameter possible from Ø to Ø H7 (mm)
D1/219 - 42
Max. inside diameter clamping hub (mm)Dmax42
Outside diameter clamping hub (mm)B81
Outside diameter of tube (mm)K76
Fastening screw (ISO 4762)EM10
Tightening torque of the fastening screw (Nm)E70
Distance between centerlines (mm)F27
Distance (mm)G12
Length (mm)O24
Clamping length (mm)I22
With keyway max. Ø H7 (mm)D1/236
Length bellows body (mm)H72
Shaft average value (mm)N47
150
CAD
ZAL Serien300
Rated torque (Nm)TKN300
Overall length min. to max. (mm)A-2240 - 6000
Fit length (mm)C42
Inside diameter possible from Ø to Ø H7 (mm)
D1/230 - 60
Max. inside diameter clamping hub (mm)Dmax60
Outside diameter clamping hub (mm)B110
Outside diameter of tube (mm)K100
Fastening screw (ISO 4762)EM12
Tightening torque of the fastening screw (Nm)E130
Distance between centerlines (mm)F39
Distance (mm)G14
Length (mm)O30
Clamping length (mm)I28
With keyway max. Ø H7 (mm)D1/260
Length bellows body (mm)H83
Shaft average value (mm)N56
300
CAD
ZAL Serien500
Rated torque (Nm)TKN500
Overall length min. to max. (mm)A-2250 - 6000
Fit length (mm)C50
Inside diameter possible from Ø to Ø H7 (mm)
D1/235 - 60
Max. inside diameter clamping hub (mm)Dmax60
Outside diameter clamping hub (mm)B123
Outside diameter of tube (mm)K110
Fastening screw (ISO 4762)EM16
Tightening torque of the fastening screw (Nm)E200
Distance between centerlines (mm)F41
Distance (mm)G17
Length (mm)O35
Clamping length (mm)I33,5
With keyway max. Ø H7 (mm)D1/260
Length bellows body (mm)H96
Shaft average value (mm)N66
500
CAD
ZAL Serien800
Rated torque (Nm)TKN800
Overall length min. to max. (mm)A-2250 - 6000
Fit length (mm)C47
Inside diameter possible from Ø to Ø H7 (mm)
D1/240 - 72
Max. inside diameter clamping hub (mm)Dmax75
Outside diameter clamping hub (mm)B133
Outside diameter of tube (mm)K120
Fastening screw (ISO 4762)EM16
Tightening torque of the fastening screw (Nm)E250
Distance between centerlines (mm)F48
Distance (mm)G19
Length (mm)O40
Clamping length (mm)I37,5
With keyway max. Ø H7 (mm)D1/266
Length bellows body (mm)H95
Shaft average value (mm)N65
800
CAD
