Specificaties

Design:
Temperatuurbereik:
Tolerantie:
Materiaal:
- Steekdeel:
- Elastromeerster:

Snelheid:
Optioneel:

2 steekdelen, concentrisch gevormd met holle klauwen
-20 - 100°C
Tussen as en steekdeel is 0.1 mm

Koppeling fiberglas versterkt thermoplastic
Precisie gietwerk, slijtvast, en thermisch stabiel polymeer
Zie tabel. Hogere snelheden op aanvraag leverbaar
Klant specifiek ontwerp en ATEX

Omschrijving

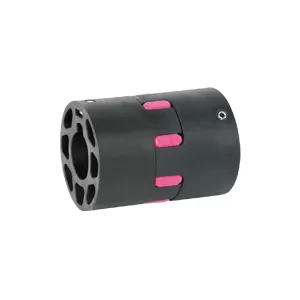

De R+W klauwkoppeling van het type TX1 Ecolight is licht en bezit daardoor een laag massatraagheidsmoment. Door het gebruik van fiberglas versterkt thermoplastic en press fit design is de koppeling extreem stijf en corrosie bestendig. Hij is eenvoudig te (de)monteren. De TX1 koppeling is te combineren met verschillende typen R+W elastomeersterren en dempen trillingen. Alle modellen R+W klauwkoppelingen TX1 zijn elektrisch isolerend. . Voor specifieke vragen over klauwkoppelingen of andere precisie koppelingen neem dan contact op met VARIODRIVE.

Specificaties

Design:
Temperatuurbereik:
Tolerantie:
Materiaal:

- Middendeel:⠀
- Elastomeerster:⠀
Snelheid:⠀
Optioneel:

2 steekdelen, concentrisch gevormd met holle klauwen
-20 - 100°C
Tussen as en steekdeel is 0.1 mm

Koppeling fiberglas versterkt thermoplastic
Precisie gietwerk, slijtvast, en thermisch stabiel polymeer
Zie tabel. Hogere snelheden op aanvraag leverbaar
Klant specifiek ontwerp en ATEX

Specificaties

Design: 2 steekdelen, concentrisch gevormd met holle klauwen
Temperatuurbereik: 20 - 100°C
Tolerantie: Tussen as en steekdeel is 0.1 mm
Materiaal:

- Steekdeel: Koppeling fiberglas versterkt thermoplastic
- Elastomeerster: precisie gietwerk, slijtvast, en thermisch stabiel polymeer
Snelheid: Zie tabel. Hogere snelheden op aanvraag leverbaar
Optioneel: Klant specifiek ontwerp en ATEX

Toepassingen

  • Machinebouw
  • Servo-drive technologie
  • Medische technologie
  • Renewable energie
  • Mijnbouw technologie
  • Pompen en compressoren
  • Transportsystemen
TX1 Serien2

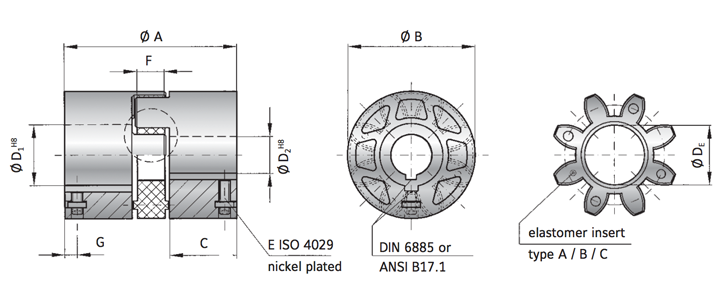

Elastomer coupling sizeA|B|C
Rated torque (Nm)TKN1|2,4|0,5
Fit length (mm)C6,5
Inside diameter possible from - to H8 (mm)D1/25-8
Inside diameter of elastomer (mm)DE6,2
Outside diameter (mm)B17
Moment of inertia per hub (10-3 kgm2)J1/J21,9
Approximate weight (kg)5,9
Tightening torque of the clamping screw max. (Nm)E0,8
Distance (mm)G3
Speed standard (min-1)12000
Maximum torque (Nm)TKmax2|4,8|1
Set screws ISO 4029EM3
Axial (mm)max.±1
Lateral (mm)max.0,08 | 0,06 | 0,2
Angular (degree)max.1
Overall length (mm)A20
Width elastomer insert (mm)F5
Static torsional stiffness (Nm/rad)CT50 | 115 | 17
Dynamic torsional stiffness (Nm/rad)Ctdyn100 | 230 | 35
2
CAD
TX1 Serien10
Elastomer coupling sizeA|B|C
Rated torque (Nm)TKN12,5|16|4
Fit length (mm)C12
Inside diameter possible from - to H8 (mm)D1/26-16
Inside diameter of elastomer (mm)DE14,2
Outside diameter (mm)B32
Moment of inertia per hub (10-3 kgm2)J1/J21,4
Approximate weight (kg)30
Tightening torque of the clamping screw max. (Nm)E0,8
Distance (mm)G3,5
Speed standard (min-1)10000
Maximum torque (Nm)TKmax25|32|6
Set screws ISO 4029EM3
Axial (mm)max.±1
Lateral (mm)max.0,2 | 0,17 | 0,2
Angular (degree)max.1,5
Overall length (mm)A35
Width elastomer insert (mm)F9,5
Static torsional stiffness (Nm/rad)CT260 | 600 | 90
Dynamic torsional stiffness (Nm/rad)Ctdyn541 | 1650 | 224
10
CAD
TX1 Serien20
Elastomer coupling sizeA|B|C
Rated torque (Nm)TKN17|21|6
Fit length (mm)C25
Inside diameter possible from - to H8 (mm)D1/210-24
Inside diameter of elastomer (mm)DE19,2
Outside diameter (mm)B42
Moment of inertia per hub (10-3 kgm2)J1/J210
Approximate weight (kg)80
Tightening torque of the clamping screw max. (Nm)E1,5
Distance (mm)G4
Speed standard (min-1)9000
Maximum torque (Nm)TKmax34|42|12
Set screws ISO 4029EM4
Axial (mm)max.±1,5
Lateral (mm)max.0,2 | 0,2 | 0,22
Angular (degree)max.1,5
Overall length (mm)A66
Width elastomer insert (mm)F12
Static torsional stiffness (Nm/rad)CT1140 | 2500 | 520
Dynamic torsional stiffness (Nm/rad)Ctdyn2540 | 4440 | 876
20
CAD
TX1 Serien60
Elastomer coupling sizeA|B|C
Rated torque (Nm)TKN60|75|20
Fit length (mm)C30
Inside diameter possible from - to H8 (mm)D1/216-30
Inside diameter of elastomer (mm)DE27,2
Outside diameter (mm)B56
Moment of inertia per hub (10-3 kgm2)J1/J230
Approximate weight (kg)180
Tightening torque of the clamping screw max. (Nm)E3
Distance (mm)G6
Speed standard (min-1)8000
Maximum torque (Nm)TKmax120|150|35
Set screws ISO 4029EM5
Axial (mm)max.±1,5
Lateral (mm)max.0,22 | 0,22 | 0,25
Angular (degree)max.1,5
Overall length (mm)A78
Width elastomer insert (mm)F14
Static torsional stiffness (Nm/rad)CT3290 | 9750 | 1400
Dynamic torsional stiffness (Nm/rad)Ctdyn7940 | 11900 | 1350
60
CAD
TX1 Serien150
Elastomer coupling sizeA|B|C
Rated torque (Nm)TKN160|200|42
Fit length (mm)C35
Inside diameter possible from - to H8 (mm)D1/219-38
Inside diameter of elastomer (mm)DE30
Outside diameter (mm)B66,5
Moment of inertia per hub (10-3 kgm2)J1/J270
Approximate weight (kg)270
Tightening torque of the clamping screw max. (Nm)E6
Distance (mm)G7
Speed standard (min-1)7000
Maximum torque (Nm)TKmax320|400|85
Set screws ISO 4029EM6
Axial (mm)max.±2
Lateral (mm)max.0,25 | 0,25 | 0,28
Angular (degree)max.1,5
Overall length (mm)A90
Width elastomer insert (mm)F15
Static torsional stiffness (Nm/rad)CT4970 | 10600 | 1130
Dynamic torsional stiffness (Nm/rad)Ctdyn13400 | 29300 | 3590
150
CAD
TX1 Serien300
Elastomer coupling sizeA|B|C
Rated torque (Nm)TKN325|405|84
Fit length (mm)C45
Inside diameter possible from - to H8 (mm)D1/220-45
Inside diameter of elastomer (mm)DE38,2
Outside diameter (mm)B82
Moment of inertia per hub (10-3 kgm2)J1/J2180
Approximate weight (kg)510
Tightening torque of the clamping screw max. (Nm)E6
Distance (mm)G7
Speed standard (min-1)6000
Maximum torque (Nm)TKmax650|810|170
Set screws ISO 4029EM6
Axial (mm)max.±2
Lateral (mm)max.0,28 | 0,28 | 0,3
Angular (degree)max.1,5
Overall length (mm)A114
Width elastomer insert (mm)F18
Static torsional stiffness (Nm/rad)CT12400 | 18000 | 1280
Dynamic torsional stiffness (Nm/rad)Ctdyn23700 | 40400 | 6090
300
CAD
TX1 Series
Elastomer coupling size
Rated torque (Nm)TKN
Fit length (mm)C
Inside diameter possible from - to H8 (mm)D1/2
Inside diameter of elastomer (mm)DE
Outside diameter (mm)B
Moment of inertia per hub (10-3 kgm2)J1/J2
Approximate weight (kg)
Tightening torque of the clamping screw max. (Nm)E
Distance (mm)G
Speed standard (min-1)
Maximum torque (Nm)TKmax
Set screws ISO 4029E
Axial (mm)max.
Lateral (mm)max.
Angular (degree)max.
Overall length (mm)A
Width elastomer insert (mm)F
Static torsional stiffness (Nm/rad)CT
Dynamic torsional stiffness (Nm/rad)Ctdyn
TX1 Series
Elastomer coupling size
Rated torque (Nm)TKN
Fit length (mm)C
Inside diameter possible from - to H8 (mm)D1/2
Inside diameter of elastomer (mm)DE
Outside diameter (mm)B
Moment of inertia per hub (10-3 kgm2)J1/J2
Approximate weight (kg)
Tightening torque of the clamping screw max. (Nm)E
Distance (mm)G
Speed standard (min-1)
Maximum torque (Nm)TKmax
Set screws ISO 4029E
Axial (mm)max.
Lateral (mm)max.
Angular (degree)max.
Overall length (mm)A
Width elastomer insert (mm)F
Static torsional stiffness (Nm/rad)CT
Dynamic torsional stiffness (Nm/rad)Ctdyn
CAD Portal
TX1 Series
Elastomer coupling size
Rated torque (Nm)TKN
Fit length (mm)C
Inside diameter possible from - to H8 (mm)D1/2
Inside diameter of elastomer (mm)DE
Outside diameter (mm)B
Moment of inertia per hub (10-3 kgm2)J1/J2
Approximate weight (kg)
Tightening torque of the clamping screw max. (Nm)E
Distance (mm)G
Speed standard (min-1)
Maximum torque (Nm)TKmax
Set screws ISO 4029E
Axial (mm)max.
Lateral (mm)max.
Angular (degree)max.
Overall length (mm)A
Width elastomer insert (mm)F
Static torsional stiffness (Nm/rad)CT
Dynamic torsional stiffness (Nm/rad)Ctdyn
CAD Portal
TX1 Series
Elastomer coupling size
Rated torque (Nm)TKN
Fit length (mm)C
Inside diameter possible from - to H8 (mm)D1/2
Inside diameter of elastomer (mm)DE
Outside diameter (mm)B
Moment of inertia per hub (10-3 kgm2)J1/J2
Approximate weight (kg)
Tightening torque of the clamping screw max. (Nm)E
Distance (mm)G
Speed standard (min-1)
Maximum torque (Nm)TKmax
Set screws ISO 4029E
Axial (mm)max.
Lateral (mm)max.
Angular (degree)max.
Overall length (mm)A
Width elastomer insert (mm)F
Static torsional stiffness (Nm/rad)CT
Dynamic torsional stiffness (Nm/rad)Ctdyn
CAD Portal
TX1 Series
Elastomer coupling size
Rated torque (Nm)TKN
Fit length (mm)C
Inside diameter possible from - to H8 (mm)D1/2
Inside diameter of elastomer (mm)DE
Outside diameter (mm)B
Moment of inertia per hub (10-3 kgm2)J1/J2
Approximate weight (kg)
Tightening torque of the clamping screw max. (Nm)E
Distance (mm)G
Speed standard (min-1)
Maximum torque (Nm)TKmax
Set screws ISO 4029E
Axial (mm)max.
Lateral (mm)max.
Angular (degree)max.
Overall length (mm)A
Width elastomer insert (mm)F
Static torsional stiffness (Nm/rad)CT
Dynamic torsional stiffness (Nm/rad)Ctdyn
CAD Portal
TX1 Series
Elastomer coupling size
Rated torque (Nm)TKN
Fit length (mm)C
Inside diameter possible from - to H8 (mm)D1/2
Inside diameter of elastomer (mm)DE
Outside diameter (mm)B
Moment of inertia per hub (10-3 kgm2)J1/J2
Approximate weight (kg)
Tightening torque of the clamping screw max. (Nm)E
Distance (mm)G
Speed standard (min-1)
Maximum torque (Nm)TKmax
Set screws ISO 4029E
Axial (mm)max.
Lateral (mm)max.
Angular (degree)max.
Overall length (mm)A
Width elastomer insert (mm)F
Static torsional stiffness (Nm/rad)CT
Dynamic torsional stiffness (Nm/rad)Ctdyn
CAD Portal
