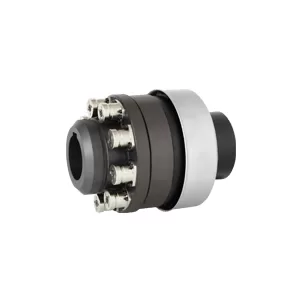

ST2
heavy duty veiligheidskoppelingen
Specificaties
Design:
- 2 naven:
- Veiligheidselementen:
Temperatuurbereik:
Tolerantie:
Service-life:
Materiaal:
- Veiligheidselement:
- Elastomeerster:
⠀
- Naven:
Optioneel:
⠀
Met spiebaan
Gelijkmatig verdeeld
Zie tabel
0.02 - 0.07 mm
Geen service
Versterkt nitro-gecarboneerd staal
Precisie gietwerk, slijtvast, en thermisch stabiel rubber
Hoogwaardig gegoten staal
Klant specifiek ontwerp, ATEX, stelsleutel of stelplaat
Omschrijving
De ST2 heavy duty veiligheidskoppeling van R+W Couplings is een versie met integrale elastomeer verbinding . Deze industrie koppeling wordt toegepast voor directe aandrijving en waar overbelasting van koppel voorkomt. De ST2 veiligheidskoppeling heeft een zeer robuust, eenvoudig design en zeer nauwkeurige beveiliging op overbelasting. Deze industriekoppeling van R+W is uitgerust met één type elastomeerster. Deze dempt de trillingen en kan zowel laterale, axiale als angulaire uitlijnfouten opvangen. Het maximaal koppel is bij de industrie koppeling is tevens handmatig te verstellen met een stelsleutel. Deze sleutel is apart te bestellen. Neem voor specifieke vragen over veiligheidskoppelingen of andere industrie koppelingen contact op met VARIODRIVE.
Specificaties
Design:
- 2 naven:
- Veiligheidselementen:
Temperatuurbereik:
Tolerantie:
Service-life:
Materiaal:
- Veiligheidselement:
- Elastomeerster:
- Naven:
Optioneel:
⠀
Met spiebaan
Gelijkmatig verdeeld
Zie tabel
0.02 - 0.07 mm
Geen service
Versterkt nitro-gecarboneerd staal
Precisie gietwerk, slijtvast, en thermisch stabiel rubber
Hoogwaardig gegoten staal
Klant specifiek ontwerp, ATEX, stelsleutel of stelplaat
Specificaties
Design:
- 2 naven: Met spiebaan
- Veiligheidselementen: Gelijkmatig verdeeld
Temperatuurbereik: Zie tabel
Tolerantie: 0.02 - 0.07 mm
Service-life: Geen service
Materiaal:
- Veiligheidselement: Versterkt nitro-gecarboneerd staal
- Elastomeerster: Precisie gietwerk, slijtvast, en thermisch stabiel rubber
- Naven: Hoogwaardig gegoten staal
Optioneel: Klant specifiek ontwerp, ATEX, stelsleutel of stelplaat
Toepassingen
- Hout verwerkingsmachines
- Bulk handling
- Tunnel boorsystemen
- Industriële Shredders
- Test bank
- Extruder
- Compressoren
- Afvalwaterzuivering

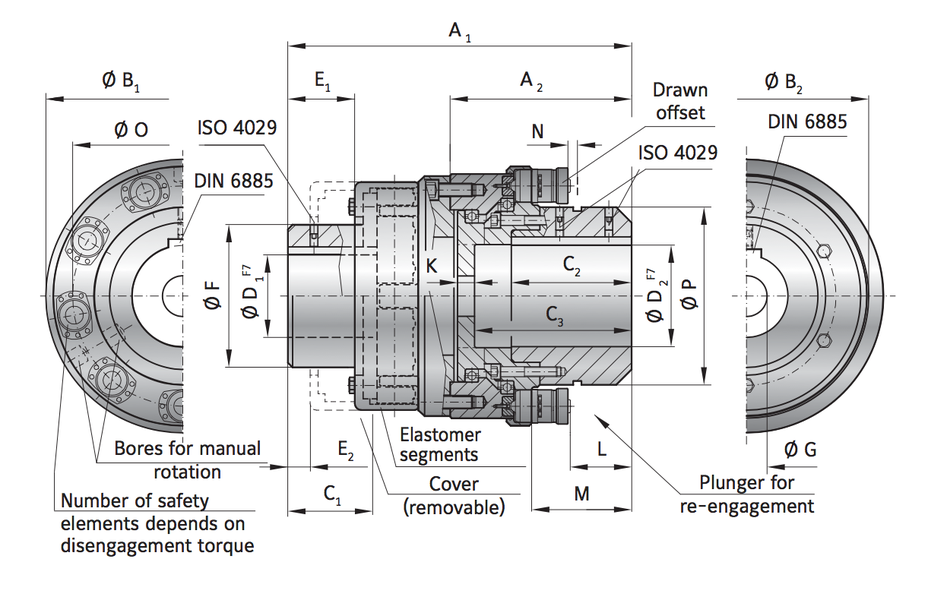

Tabel
| ST2 Series | |
| Overall length | A1 |
| Fit length/keyway length Elastomer segment (mm) | C1 |
| Fit length/keyway length Clutch segment (mm) | C2 |
| Bore diameter (elastomer portion) Ø – Ø F7 (mm) | D1 |
| Bore diameter (torque limiting portion) Ø – Ø F7 (mm) | D2 |
| Bolt circle diameter ST (mm) | O |
| Moment of inertia (approx.) D max. + max. sgmnt (10-3 kgm2) | |
| Moment of inertia (approx.) D max. + max. sgmnt (10-3kgm2) | |
| Distance (mm) | L |
| Distance (mm) | M |
| Hub outside diameter (mm) | P |
| Speed max. (rpm) | |
| Length (mm) | E2 |
| Length (mm) | E1 |
| Length of torque limiting portion (mm) | A2 |
| Bore depth (torque limiting portion) (mm) | C3 |
| Outside diameter of hub (mm) | F |
| Flange outside diameter (mm) | B1 |
| Flange outside diameter (elastomer portion) (mm) | B2 |
| Axial (mm) | |
| Lateral (mm) | |
| Angular (degree) | |
| Dynamic torsional stiffness at TKN (Standard A Insert) (10³ Nm/rad) | |
| Adjustment range available from - to (KNm) | |
| Actuation distance (mm) | N |
| Bore for fastening screw (mm) | G |
| ST2 Series | |
| Overall length | A1 |
| Fit length/keyway length Elastomer segment (mm) | C1 |
| Fit length/keyway length Clutch segment (mm) | C2 |
| Bore diameter (elastomer portion) Ø – Ø F7 (mm) | D1 |
| Bore diameter (torque limiting portion) Ø – Ø F7 (mm) | D2 |
| Bolt circle diameter ST (mm) | O |
| Moment of inertia (approx.) D max. + max. sgmnt (10-3 kgm2) | |
| Moment of inertia (approx.) D max. + max. sgmnt (10-3kgm2) | |
| Distance (mm) | L |
| Distance (mm) | M |
| Hub outside diameter (mm) | P |
| Speed max. (rpm) | |
| Length (mm) | E2 |
| Length (mm) | E1 |
| Length of torque limiting portion (mm) | A2 |
| Bore depth (torque limiting portion) (mm) | C3 |
| Outside diameter of hub (mm) | F |
| Flange outside diameter (mm) | B1 |
| Flange outside diameter (elastomer portion) (mm) | B2 |
| Axial (mm) | |
| Lateral (mm) | |
| Angular (degree) | |
| Dynamic torsional stiffness at TKN (Standard A Insert) (10³ Nm/rad) | |
| Adjustment range available from - to (KNm) | |
| Actuation distance (mm) | N |
| Bore for fastening screw (mm) | G |
| CAD Portal |
| ST2 Series | |
| Overall length | A1 |
| Fit length/keyway length Elastomer segment (mm) | C1 |
| Fit length/keyway length Clutch segment (mm) | C2 |
| Bore diameter (elastomer portion) Ø – Ø F7 (mm) | D1 |
| Bore diameter (torque limiting portion) Ø – Ø F7 (mm) | D2 |
| Bolt circle diameter ST (mm) | O |
| Moment of inertia (approx.) D max. + max. sgmnt (10-3 kgm2) | |
| Moment of inertia (approx.) D max. + max. sgmnt (10-3kgm2) | |
| Distance (mm) | L |
| Distance (mm) | M |
| Hub outside diameter (mm) | P |
| Speed max. (rpm) | |
| Length (mm) | E2 |
| Length (mm) | E1 |
| Length of torque limiting portion (mm) | A2 |
| Bore depth (torque limiting portion) (mm) | C3 |
| Outside diameter of hub (mm) | F |
| Flange outside diameter (mm) | B1 |
| Flange outside diameter (elastomer portion) (mm) | B2 |
| Axial (mm) | |
| Lateral (mm) | |
| Angular (degree) | |
| Dynamic torsional stiffness at TKN (Standard A Insert) (10³ Nm/rad) | |
| Adjustment range available from - to (KNm) | |
| Actuation distance (mm) | N |
| Bore for fastening screw (mm) | G |
| CAD Portal |
| ST2 Series | |
| Overall length | A1 |
| Fit length/keyway length Elastomer segment (mm) | C1 |
| Fit length/keyway length Clutch segment (mm) | C2 |
| Bore diameter (elastomer portion) Ø – Ø F7 (mm) | D1 |
| Bore diameter (torque limiting portion) Ø – Ø F7 (mm) | D2 |
| Bolt circle diameter ST (mm) | O |
| Moment of inertia (approx.) D max. + max. sgmnt (10-3 kgm2) | |
| Moment of inertia (approx.) D max. + max. sgmnt (10-3kgm2) | |
| Distance (mm) | L |
| Distance (mm) | M |
| Hub outside diameter (mm) | P |
| Speed max. (rpm) | |
| Length (mm) | E2 |
| Length (mm) | E1 |
| Length of torque limiting portion (mm) | A2 |
| Bore depth (torque limiting portion) (mm) | C3 |
| Outside diameter of hub (mm) | F |
| Flange outside diameter (mm) | B1 |
| Flange outside diameter (elastomer portion) (mm) | B2 |
| Axial (mm) | |
| Lateral (mm) | |
| Angular (degree) | |
| Dynamic torsional stiffness at TKN (Standard A Insert) (10³ Nm/rad) | |
| Adjustment range available from - to (KNm) | |
| Actuation distance (mm) | N |
| Bore for fastening screw (mm) | G |
| CAD Portal |
| ST2 Series | |
| Overall length | A1 |
| Fit length/keyway length Elastomer segment (mm) | C1 |
| Fit length/keyway length Clutch segment (mm) | C2 |
| Bore diameter (elastomer portion) Ø – Ø F7 (mm) | D1 |
| Bore diameter (torque limiting portion) Ø – Ø F7 (mm) | D2 |
| Bolt circle diameter ST (mm) | O |
| Moment of inertia (approx.) D max. + max. sgmnt (10-3 kgm2) | |
| Moment of inertia (approx.) D max. + max. sgmnt (10-3kgm2) | |
| Distance (mm) | L |
| Distance (mm) | M |
| Hub outside diameter (mm) | P |
| Speed max. (rpm) | |
| Length (mm) | E2 |
| Length (mm) | E1 |
| Length of torque limiting portion (mm) | A2 |
| Bore depth (torque limiting portion) (mm) | C3 |
| Outside diameter of hub (mm) | F |
| Flange outside diameter (mm) | B1 |
| Flange outside diameter (elastomer portion) (mm) | B2 |
| Axial (mm) | |
| Lateral (mm) | |
| Angular (degree) | |
| Dynamic torsional stiffness at TKN (Standard A Insert) (10³ Nm/rad) | |
| Adjustment range available from - to (KNm) | |
| Actuation distance (mm) | N |
| Bore for fastening screw (mm) | G |
| CAD Portal |
| ST2 Series | |
| Overall length | A1 |
| Fit length/keyway length Elastomer segment (mm) | C1 |
| Fit length/keyway length Clutch segment (mm) | C2 |
| Bore diameter (elastomer portion) Ø – Ø F7 (mm) | D1 |
| Bore diameter (torque limiting portion) Ø – Ø F7 (mm) | D2 |
| Bolt circle diameter ST (mm) | O |
| Moment of inertia (approx.) D max. + max. sgmnt (10-3 kgm2) | |
| Moment of inertia (approx.) D max. + max. sgmnt (10-3kgm2) | |
| Distance (mm) | L |
| Distance (mm) | M |
| Hub outside diameter (mm) | P |
| Speed max. (rpm) | |
| Length (mm) | E2 |
| Length (mm) | E1 |
| Length of torque limiting portion (mm) | A2 |
| Bore depth (torque limiting portion) (mm) | C3 |
| Outside diameter of hub (mm) | F |
| Flange outside diameter (mm) | B1 |
| Flange outside diameter (elastomer portion) (mm) | B2 |
| Axial (mm) | |
| Lateral (mm) | |
| Angular (degree) | |
| Dynamic torsional stiffness at TKN (Standard A Insert) (10³ Nm/rad) | |
| Adjustment range available from - to (KNm) | |
| Actuation distance (mm) | N |
| Bore for fastening screw (mm) | G |
| CAD Portal |
| ST2 Series | |
| Overall length | A1 |
| Fit length/keyway length Elastomer segment (mm) | C1 |
| Fit length/keyway length Clutch segment (mm) | C2 |
| Bore diameter (elastomer portion) Ø – Ø F7 (mm) | D1 |
| Bore diameter (torque limiting portion) Ø – Ø F7 (mm) | D2 |
| Bolt circle diameter ST (mm) | O |
| Moment of inertia (approx.) D max. + max. sgmnt (10-3 kgm2) | |
| Moment of inertia (approx.) D max. + max. sgmnt (10-3kgm2) | |
| Distance (mm) | L |
| Distance (mm) | M |
| Hub outside diameter (mm) | P |
| Speed max. (rpm) | |
| Length (mm) | E2 |
| Length (mm) | E1 |
| Length of torque limiting portion (mm) | A2 |
| Bore depth (torque limiting portion) (mm) | C3 |
| Outside diameter of hub (mm) | F |
| Flange outside diameter (mm) | B1 |
| Flange outside diameter (elastomer portion) (mm) | B2 |
| Axial (mm) | |
| Lateral (mm) | |
| Angular (degree) | |
| Dynamic torsional stiffness at TKN (Standard A Insert) (10³ Nm/rad) | |
| Adjustment range available from - to (KNm) | |
| Actuation distance (mm) | N |
| Bore for fastening screw (mm) | G |
| CAD Portal |
| ST2 Series | |
| Overall length | A1 |
| Fit length/keyway length Elastomer segment (mm) | C1 |
| Fit length/keyway length Clutch segment (mm) | C2 |
| Bore diameter (elastomer portion) Ø – Ø F7 (mm) | D1 |
| Bore diameter (torque limiting portion) Ø – Ø F7 (mm) | D2 |
| Bolt circle diameter ST (mm) | O |
| Moment of inertia (approx.) D max. + max. sgmnt (10-3 kgm2) | |
| Moment of inertia (approx.) D max. + max. sgmnt (10-3kgm2) | |
| Distance (mm) | L |
| Distance (mm) | M |
| Hub outside diameter (mm) | P |
| Speed max. (rpm) | |
| Length (mm) | E2 |
| Length (mm) | E1 |
| Length of torque limiting portion (mm) | A2 |
| Bore depth (torque limiting portion) (mm) | C3 |
| Outside diameter of hub (mm) | F |
| Flange outside diameter (mm) | B1 |
| Flange outside diameter (elastomer portion) (mm) | B2 |
| Axial (mm) | |
| Lateral (mm) | |
| Angular (degree) | |
| Dynamic torsional stiffness at TKN (Standard A Insert) (10³ Nm/rad) | |
| Adjustment range available from - to (KNm) | |
| Actuation distance (mm) | N |
| Bore for fastening screw (mm) | G |
| CAD Portal |
