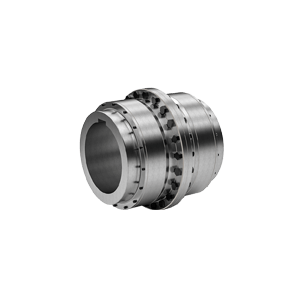

LPZ
heavy duty lamellenkoppelingen
Specificaties
Design:
Onderhoud:
Materiaal:
Optioneel:
Tussendeel voor meerdere typen uit de LP serie
Onderhoudsvrij
Hoogwaardig staal
Klant specifiek ontwerp en ATEX
Omschrijving

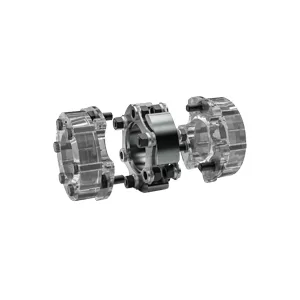

Het LPZ heavy duty tussendeel van R+W Couplings heeft een double flex design en is voor verschillende typen koppelingen en naven uit de LP serie te gebruiken. Dit tussendeel heeft een hoge torsiestijfheid. Deze industrie tussendelen worden toegepast voor oneindlige levensduur bij extreme omstandigheden. Neem voor specifieke vragen over lamellenkoppeling of andere industrie koppelingen contact op met VARIODRIVE.
Specificaties
Design:
Onderhoud:
Materiaal:
Optioneel:
Tussendeel voor meerdere typen uit de LP serie
Onderhoudsvrij
Hoogwaardig staal
Klant specifiek ontwerp en ATEX
Specificaties
Design: Tussendeel voor meerdere typen uit de LP serie
Onderhoud: Onderhoudsvrij
Materiaal: Hoogwaardig staal
Optioneel: Klant specifiek ontwerp en ATEX
Toepassingen
- Papiermachines
- Staalwals installaties
- Test stands
- Generatoren
- Bulk handling
- Centrifuges
- Aandrijving voor koeltorens
- Compressoren
- Printmachines
Datasheets
Manuals

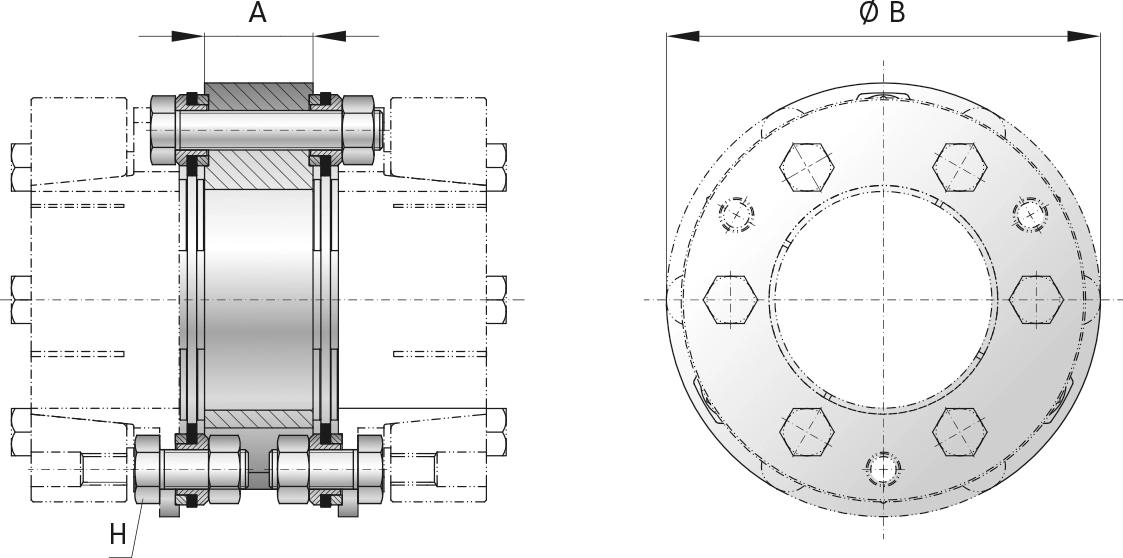

Tabel
| LPZ Series | |
| Rated torque (Nm) | TKN |
| Maximum torque (Nm) | TKmax |
| Intermediate flange length (mm) | G |
| Outside diameter (mm) | ø AD |
| Fastening screw (ISO 4017) Nut (DIN 4032) | E |
| Tightening torque of the fastening screw (Nm) | |
| Moment of inertia (10-3 kgm2) | Jges. |
| Approximate weight (kg) | |
| Torsional stiffness (10³ Nm/rad) | CT |
| Axial ± (mm) | |
| Lateral ± (mm) | |
| Angular ± (degree) | max. |
| Speed max. (rpm) | |
| maximum speed (balanced) (1/min.) | |
| Material | |
| LPZ Series | |
| Rated torque (Nm) | TKN |
| Maximum torque (Nm) | TKmax |
| Intermediate flange length (mm) | G |
| Outside diameter (mm) | ø AD |
| Fastening screw (ISO 4017) Nut (DIN 4032) | E |
| Tightening torque of the fastening screw (Nm) | |
| Moment of inertia (10-3 kgm2) | Jges. |
| Approximate weight (kg) | |
| Torsional stiffness (10³ Nm/rad) | CT |
| Axial ± (mm) | |
| Lateral ± (mm) | |
| Angular ± (degree) | max. |
| Speed max. (rpm) | |
| maximum speed (balanced) (1/min.) | |
| Material | |
| CAD Portal |
| LPZ Series | |
| Rated torque (Nm) | TKN |
| Maximum torque (Nm) | TKmax |
| Intermediate flange length (mm) | G |
| Outside diameter (mm) | ø AD |
| Fastening screw (ISO 4017) Nut (DIN 4032) | E |
| Tightening torque of the fastening screw (Nm) | |
| Moment of inertia (10-3 kgm2) | Jges. |
| Approximate weight (kg) | |
| Torsional stiffness (10³ Nm/rad) | CT |
| Axial ± (mm) | |
| Lateral ± (mm) | |
| Angular ± (degree) | max. |
| Speed max. (rpm) | |
| maximum speed (balanced) (1/min.) | |
| Material | |
| CAD Portal |
| LPZ Series | |
| Rated torque (Nm) | TKN |
| Maximum torque (Nm) | TKmax |
| Intermediate flange length (mm) | G |
| Outside diameter (mm) | ø AD |
| Fastening screw (ISO 4017) Nut (DIN 4032) | E |
| Tightening torque of the fastening screw (Nm) | |
| Moment of inertia (10-3 kgm2) | Jges. |
| Approximate weight (kg) | |
| Torsional stiffness (10³ Nm/rad) | CT |
| Axial ± (mm) | |
| Lateral ± (mm) | |
| Angular ± (degree) | max. |
| Speed max. (rpm) | |
| maximum speed (balanced) (1/min.) | |
| Material | |
| CAD Portal |
| LPZ Series | |
| Rated torque (Nm) | TKN |
| Maximum torque (Nm) | TKmax |
| Intermediate flange length (mm) | G |
| Outside diameter (mm) | ø AD |
| Fastening screw (ISO 4017) Nut (DIN 4032) | E |
| Tightening torque of the fastening screw (Nm) | |
| Moment of inertia (10-3 kgm2) | Jges. |
| Approximate weight (kg) | |
| Torsional stiffness (10³ Nm/rad) | CT |
| Axial ± (mm) | |
| Lateral ± (mm) | |
| Angular ± (degree) | max. |
| Speed max. (rpm) | |
| maximum speed (balanced) (1/min.) | |
| Material | |
| CAD Portal |
| LPZ Series | |
| Rated torque (Nm) | TKN |
| Maximum torque (Nm) | TKmax |
| Intermediate flange length (mm) | G |
| Outside diameter (mm) | ø AD |
| Fastening screw (ISO 4017) Nut (DIN 4032) | E |
| Tightening torque of the fastening screw (Nm) | |
| Moment of inertia (10-3 kgm2) | Jges. |
| Approximate weight (kg) | |
| Torsional stiffness (10³ Nm/rad) | CT |
| Axial ± (mm) | |
| Lateral ± (mm) | |
| Angular ± (degree) | max. |
| Speed max. (rpm) | |
| maximum speed (balanced) (1/min.) | |
| Material | |
| CAD Portal |
| LPZ Series | |
| Rated torque (Nm) | TKN |
| Maximum torque (Nm) | TKmax |
| Intermediate flange length (mm) | G |
| Outside diameter (mm) | ø AD |
| Fastening screw (ISO 4017) Nut (DIN 4032) | E |
| Tightening torque of the fastening screw (Nm) | |
| Moment of inertia (10-3 kgm2) | Jges. |
| Approximate weight (kg) | |
| Torsional stiffness (10³ Nm/rad) | CT |
| Axial ± (mm) | |
| Lateral ± (mm) | |
| Angular ± (degree) | max. |
| Speed max. (rpm) | |
| maximum speed (balanced) (1/min.) | |
| Material | |
| CAD Portal |
| LPZ Series | |
| Rated torque (Nm) | TKN |
| Maximum torque (Nm) | TKmax |
| Intermediate flange length (mm) | G |
| Outside diameter (mm) | ø AD |
| Fastening screw (ISO 4017) Nut (DIN 4032) | E |
| Tightening torque of the fastening screw (Nm) | |
| Moment of inertia (10-3 kgm2) | Jges. |
| Approximate weight (kg) | |
| Torsional stiffness (10³ Nm/rad) | CT |
| Axial ± (mm) | |
| Lateral ± (mm) | |
| Angular ± (degree) | max. |
| Speed max. (rpm) | |
| maximum speed (balanced) (1/min.) | |
| Material | |
| CAD Portal |
| LPZ Series | |
| Rated torque (Nm) | TKN |
| Maximum torque (Nm) | TKmax |
| Intermediate flange length (mm) | G |
| Outside diameter (mm) | ø AD |
| Fastening screw (ISO 4017) Nut (DIN 4032) | E |
| Tightening torque of the fastening screw (Nm) | |
| Moment of inertia (10-3 kgm2) | Jges. |
| Approximate weight (kg) | |
| Torsional stiffness (10³ Nm/rad) | CT |
| Axial ± (mm) | |
| Lateral ± (mm) | |
| Angular ± (degree) | max. |
| Speed max. (rpm) | |
| maximum speed (balanced) (1/min.) | |
| Material | |
| CAD Portal |
| LPZ Series | |
| Rated torque (Nm) | TKN |
| Maximum torque (Nm) | TKmax |
| Intermediate flange length (mm) | G |
| Outside diameter (mm) | ø AD |
| Fastening screw (ISO 4017) Nut (DIN 4032) | E |
| Tightening torque of the fastening screw (Nm) | |
| Moment of inertia (10-3 kgm2) | Jges. |
| Approximate weight (kg) | |
| Torsional stiffness (10³ Nm/rad) | CT |
| Axial ± (mm) | |
| Lateral ± (mm) | |
| Angular ± (degree) | max. |
| Speed max. (rpm) | |
| maximum speed (balanced) (1/min.) | |
| Material | |
| CAD Portal |
| LPZ Series | |
| Rated torque (Nm) | TKN |
| Maximum torque (Nm) | TKmax |
| Intermediate flange length (mm) | G |
| Outside diameter (mm) | ø AD |
| Fastening screw (ISO 4017) Nut (DIN 4032) | E |
| Tightening torque of the fastening screw (Nm) | |
| Moment of inertia (10-3 kgm2) | Jges. |
| Approximate weight (kg) | |
| Torsional stiffness (10³ Nm/rad) | CT |
| Axial ± (mm) | |
| Lateral ± (mm) | |
| Angular ± (degree) | max. |
| Speed max. (rpm) | |
| maximum speed (balanced) (1/min.) | |
| Material | |
| CAD Portal |
