Specificaties

Design:

Temperatuurbereik:
Tolerantie:
Materiaal:
- Steekdeel:

- Elastomeerster:

- Asdeel:

Snelheid:
Optioneel:

2 steekdelen concentrisch bewerkt met gebogen klauwen
Verschilt per type elastomeerster
0.01 - 0.05 mm

≤ series 450 in hoogwaardig aluminium, series 800 ≥ staal
precisie gietwerk, slijtvast, en thermisch stabiel polymeer
≤ series 450 in hoogwaardig aluminium, series 800 ≥ staal
Afhankelijk van applicatie
Klant specifiek ontwerp, RVS en Atex

Omschrijving

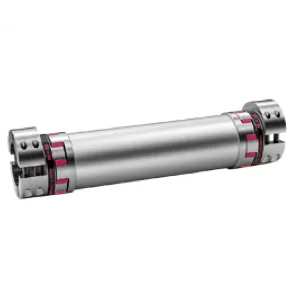

De EZ2 tussenas van R+W Couplings kan met zijn lange design grote afstanden standaard tot 4 meter overbruggen en is makkelijk te (de)monteren. De concentrisch bewerkte klemnaven geven de koppeling een zeer mooie rondloop. Door het press fit design is deze precisie askoppeling spelingsvrij. De EZ2 askoppeling is te combineren met 2 verschillende typen R+W elastomeersterren, welteverstaan A en B. Beide typen R+W elastomeersterren dempen de trillingen in verschillende mate en zijn elektrisch isolerend. Voor specifieke vragen over tussenassen of andere precisie koppelingen neem dan contact op met VARIODRIVE.

Specificaties

Design:
Temperatuurbereik:
Tolerantie:
Materiaal:
- Steekdeel:
- Elastomeerster:
- Asdeel:
Snelheid:
Optioneel:

2 steekdelen concentrisch bewerkt met gebogen klauwen
Verschilt per type elastomeerster
0.01 - 0.05 mm

≤ series 450 in hoogwaardig aluminium, series 800 ≥ staal
precisie gietwerk, slijtvast, en thermisch stabiel polymeer
≤ series 450 in hoogwaardig aluminium, series 800 ≥ staal
Afhankelijk van applicatie
Klant specifiek ontwerp, RVS en Atex

Specificaties

Design: 2 steekdelen concentrisch bewerkt met gebogen klauwen
Temperatuurbereik: Verschilt per type elastomeerster
Tolerantie: 0.01 - 0.05 mm
Materiaal:
- Steekdeel: ≤ series 450 in hoogwaardig aluminium, series 800 ≥ staal
- Elastomeerster: precisie gietwerk, slijtvast, en thermisch stabiel polymeer
- Asdeel: ≤ series 450 in hoogwaardig aluminium, series 800 ≥ staal
Snelheid: Afhankelijk van applicatie
Optioneel: Klant specifiek ontwerp, RVS en Atex

Toepassingen

  • Material handeling
  • Print technologie
  • Verpakkingsmachines
  • Theater automatisering
  • Gantry systemen
  • Schroef spindel systemen

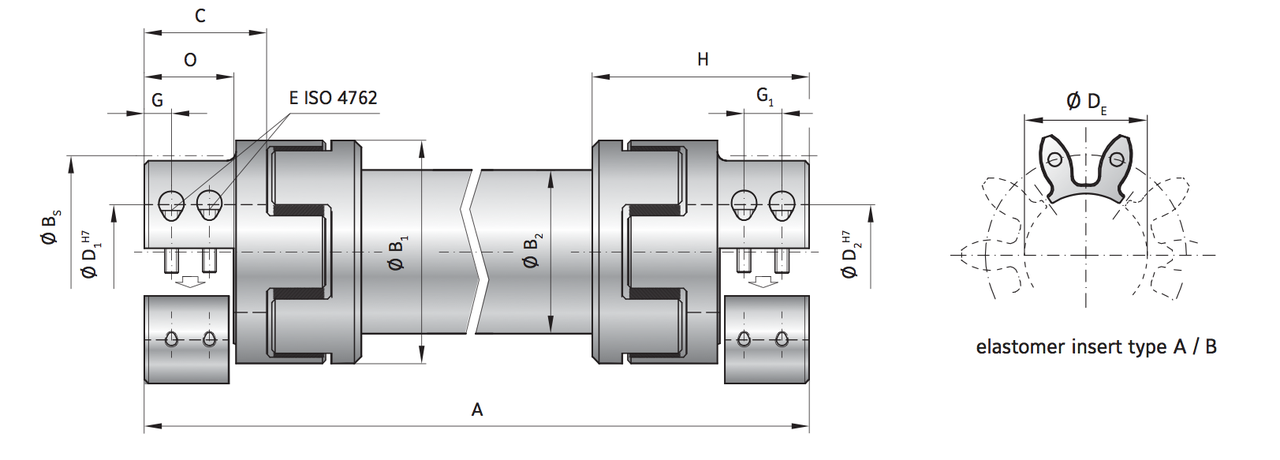

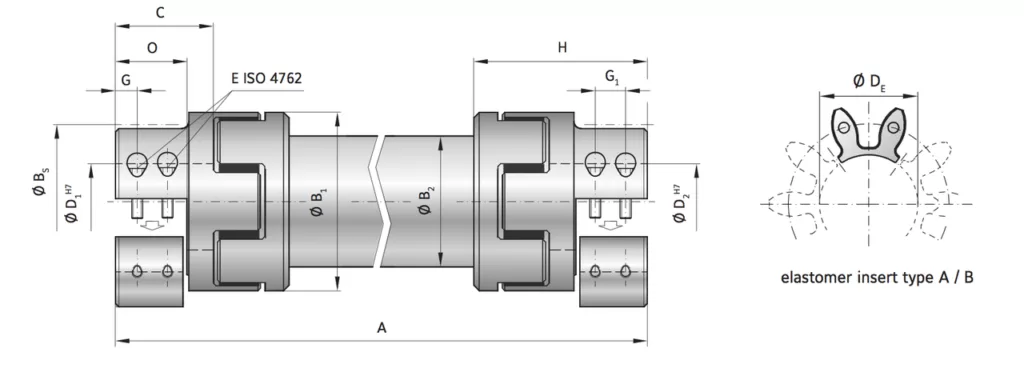

EZ2 Serien2500
Type (Elastomer insert)A|B
Rated torque (Nm)TKN1950|2450
Overall length (mm)H142
Fit length (mm)C88
Inside diameter possible from Ø to Ø H7 (mm)
D1/235-90
Inside diameter of elastomer (mm)DE80
Outside diameter with screw head (mm)BS155
Outside diameter hub (mm)B1160
Outside diameter tube section (mm)B2150
Moment of inertia per hub (10-3 kgm2)J1/J230
Inertia of tube per meter (10-3 kgm2)J3360
Combined dynamic torsional stiffness of the inserts (Nm/rad)CtdynE87.500|108.000
Torsional stiffness of tube per meter (Nm/rad)CTZWR950000
Fastening screw (ISO 4762)E4xM16
Tightening torque of the fastening screw (Nm)E290
Distance between centerlines (mm)F57
Distance (mm)G/G118 | 30
Maximum torque (Nm)TKmax3900|4900
Length (mm)O67
Overall length (mm)A460-4.000
Shaft average value (mm)N108
2500
CAD
EZ2 Serien4500
Type (Elastomer insert)A|B
Rated torque (Nm)TKN5000|6200
Overall length (mm)H181
Fit length (mm)C113
Inside diameter possible from Ø to Ø H7 (mm)
D1/240-120
Inside diameter of elastomer (mm)DE111
Outside diameter with screw head (mm)BS199
Outside diameter hub (mm)B1225
Outside diameter tube section (mm)B2175
Moment of inertia per hub (10-3 kgm2)J1/J2140
Inertia of tube per meter (10-3 kgm2)J3750
Combined dynamic torsional stiffness of the inserts (Nm/rad)CtdynE168.500|371.500
Torsional stiffness of tube per meter (Nm/rad)CTZWR2200000
Fastening screw (ISO 4762)E8xM20
Tightening torque of the fastening screw (Nm)E600
Distance between centerlines (mm)F75
Distance (mm)G/G124/41
Maximum torque (Nm)TKmax10000|12400
Length (mm)O84
Overall length (mm)A580-4.000
Shaft average value (mm)N137
4500
CAD
EZ2 Serien9500
Type (Elastomer insert)A|B
Rated torque (Nm)TKN10000|12500
Overall length (mm)H229
Fit length (mm)C140
Inside diameter possible from Ø to Ø H7 (mm)
D1/250-140
Inside diameter of elastomer (mm)DE145
Outside diameter with screw head (mm)BS243
Outside diameter hub (mm)B1300
Outside diameter tube section (mm)B2220
Moment of inertia per hub (10-3 kgm2)J1/J2450
Inertia of tube per meter (10-3 kgm2)J31800
Combined dynamic torsional stiffness of the inserts (Nm/rad)CtdynE590.00|670.000
Torsional stiffness of tube per meter (Nm/rad)CTZWR5500000
Fastening screw (ISO 4762)E8xM24
Tightening torque of the fastening screw (Nm)E980
Distance between centerlines (mm)F90
Distance (mm)G/G130/48
Maximum torque (Nm)TKmax20000|25000
Length (mm)O105
Overall length (mm)A710-4.000
Shaft average value (mm)N171
9500
CAD
EZ2 Series
Type (Elastomer insert)
Rated torque (Nm)TKN
Overall length (mm)H
Fit length (mm)C
Inside diameter possible from Ø to Ø H7 (mm)
D1/2
Inside diameter of elastomer (mm)DE
Outside diameter with screw head (mm)BS
Outside diameter hub (mm)B1
Outside diameter tube section (mm)B2
Moment of inertia per hub (10-3 kgm2)J1/J2
Inertia of tube per meter (10-3 kgm2)J3
Combined dynamic torsional stiffness of the inserts (Nm/rad)CtdynE
Torsional stiffness of tube per meter (Nm/rad)CTZWR
Fastening screw (ISO 4762)E
Tightening torque of the fastening screw (Nm)E
Distance between centerlines (mm)F
Distance (mm)G/G1
Maximum torque (Nm)TKmax
Length (mm)O
Overall length (mm)A
Shaft average value (mm)N
EZ2 Series
Type (Elastomer insert)
Rated torque (Nm)TKN
Overall length (mm)H
Fit length (mm)C
Inside diameter possible from Ø to Ø H7 (mm)
D1/2
Inside diameter of elastomer (mm)DE
Outside diameter with screw head (mm)BS
Outside diameter hub (mm)B1
Outside diameter tube section (mm)B2
Moment of inertia per hub (10-3 kgm2)J1/J2
Inertia of tube per meter (10-3 kgm2)J3
Combined dynamic torsional stiffness of the inserts (Nm/rad)CtdynE
Torsional stiffness of tube per meter (Nm/rad)CTZWR
Fastening screw (ISO 4762)E
Tightening torque of the fastening screw (Nm)E
Distance between centerlines (mm)F
Distance (mm)G/G1
Maximum torque (Nm)TKmax
Length (mm)O
Overall length (mm)A
Shaft average value (mm)N
CAD Portal
EZ2 Series
Type (Elastomer insert)
Rated torque (Nm)TKN
Overall length (mm)H
Fit length (mm)C
Inside diameter possible from Ø to Ø H7 (mm)
D1/2
Inside diameter of elastomer (mm)DE
Outside diameter with screw head (mm)BS
Outside diameter hub (mm)B1
Outside diameter tube section (mm)B2
Moment of inertia per hub (10-3 kgm2)J1/J2
Inertia of tube per meter (10-3 kgm2)J3
Combined dynamic torsional stiffness of the inserts (Nm/rad)CtdynE
Torsional stiffness of tube per meter (Nm/rad)CTZWR
Fastening screw (ISO 4762)E
Tightening torque of the fastening screw (Nm)E
Distance between centerlines (mm)F
Distance (mm)G/G1
Maximum torque (Nm)TKmax
Length (mm)O
Overall length (mm)A
Shaft average value (mm)N
CAD Portal
