Specificaties

Design:

Temperatuurbereik:
Tolerantie:
Materiaal:

- Middendeel:
- Elastomeester:

Snelheid:
Optioneel:

Een concentrisch bewerkt middendeel met gebogen klauwen
Verschilt per type elastomeer
0.01 - 0.05 mm tussen as en steekdeel

Hoogwaardig aluminium
Precisie gietwerk, slijtvast, en thermisch stabiel polymeer
Zie tabel
het product kan gecombineerd worden met andere R+W elastomeer koppelingen. Klant specifiek ontwerp, RVS en ATEX

Omschrijving

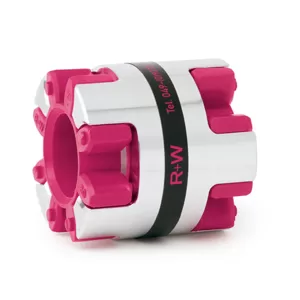

De EKZ elastomeer spacer van R+W Couplings is bedoeld om de klauwkoppelingen een extra lengte te geven. Dit middendeel is spelingsvrij en kan door zijn extra lengte een grote uitlijnfout compenseren en extra demping bieden. De EKZ spacer heeft een compact design en is gemakkelijk te (de)monteren. De koppeling is te combineren met verschillende typen R+W elastomeersterren. Alle typen R+W elastomeersterren dempen de trillingen en zijn elektrisch isolerend, waarbij de ATEX versie juist geleidend is. Voor specifieke vragen over klauwkoppelingen neem dan contact op met VARIODRIVE.

Specificaties

Design:
Temperatuurbereik:
Tolerantie:
Materiaal:

- Middendeel:⠀
- Elastomeester:⠀
Snelheid:⠀
Optioneel:

Een concentrisch bewerkt middendeel met gebogen klauwen
Verschilt per type elastomeer
0.01 - 0.05 mm tussen as en steekdeel

Hoogwaardig aluminium
Precisie gietwerk, slijtvast, en thermisch stabiel polymeer
Zie tabel
het product kan gecombineerd worden met andere R+W elastomeer koppelingen. Klant specifiek ontwerp, RVS en ATEX

Specificaties

Design: Een concentrisch bewerkt middendeel met gebogen klauwen
Temperatuurbereik: Verschilt per type elastomeerster
Tolerantie: 0.01 - 0.05 mm tussen as en steekdeel
Materiaal:

- Middendeel: Hoogwaardig aluminium
- Elastomeester: Precisie gietwerk, slijtvast, en thermisch stabiel polymeer
Snelheid: Zie tabel
Optioneel: het product kan gecombineerd worden met andere R+W elastomeer koppelingen. Klant specifiek ontwerp, RVS en ATEX

Toepassingen

  • Machinebouw
  • Servo-drive technologie
  • Medische technologie
  • Renewable energy
  • Mijnbouw technologie
  • Pompen en compressoren
  • Transportsystemen

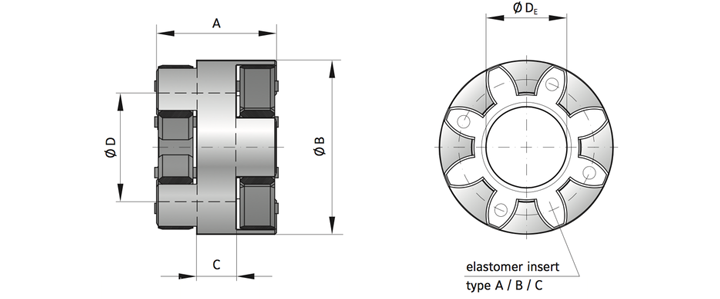

EKZ Serien2
Type (Elastomer insert)A|B|C
Rated torque (Nm)TKN2|2,4|0,5
Inside diameter of elastomer (mm)DE6,2
Outside diameter (mm)B16
Moment of inertia (10-3 kgm2)J1/J20,0001
Approximate weight (kg)0,007
Speed standard (min -1)15000
Hub length (mm)C9
Maximum torque (Nm)TKmax4|4,8|1
Overall length (mm)A20
Inside diameter (mm)D9
2
CAD
EKZ Serien5
Type (Elastomer insert)A|B|C
Rated torque (Nm)TKN9|12|2
Inside diameter of elastomer (mm)DE10,2
Outside diameter (mm)B25
Moment of inertia (10-3 kgm2)J1/J20,0005
Approximate weight (kg)0,02
Speed standard (min -1)15000
Hub length (mm)C9
Maximum torque (Nm)TKmax18|24|4
Overall length (mm)A26
Inside diameter (mm)D15
5
CAD
EKZ Serien10
Type (Elastomer insert)A|B|C
Rated torque (Nm)TKN12,5|16|4
Inside diameter of elastomer (mm)DE14,2
Outside diameter (mm)B32
Moment of inertia (10-3 kgm2)J1/J20,002
Approximate weight (kg)0,04
Speed standard (min -1)13000
Hub length (mm)C9
Maximum torque (Nm)TKmax25|32|6
Overall length (mm)A30
Inside diameter (mm)D18
10
CAD
EKZ Serien20
Type (Elastomer insert)A|B|C
Rated torque (Nm)TKN17|21|6
Inside diameter of elastomer (mm)DE19,2
Outside diameter (mm)B42
Moment of inertia (10-3 kgm2)J1/J20,008
Approximate weight (kg)0,09
Speed standard (min -1)12500
Hub length (mm)C10
Maximum torque (Nm)TKmax34|42|12
Overall length (mm)A39
Inside diameter (mm)D25
20
CAD
EKZ Serien60
Type (Elastomer insert)A|B|C
Rated torque (Nm)TKN60|75|20
Inside diameter of elastomer (mm)DE26,2
Outside diameter (mm)B56
Moment of inertia (10-3 kgm2)J1/J20,03
Approximate weight (kg)0,21
Speed standard (min -1)11000
Hub length (mm)C16
Maximum torque (Nm)TKmax120|150|35
Overall length (mm)A48
Inside diameter (mm)D32
60
CAD
EKZ Serien150
Type (Elastomer insert)A|B|C
Rated torque (Nm)TKN160|200|42
Inside diameter of elastomer (mm)DE29,2
Outside diameter (mm)B66,5
Moment of inertia (10-3 kgm2)J1/J20,05
Approximate weight (kg)0,33
Speed standard (min -1)10000
Hub length (mm)C18
Maximum torque (Nm)TKmax320|400|85
Overall length (mm)A53
Inside diameter (mm)D38
150
CAD
EKZ Serien300
Type (Elastomer insert)A|B|C
Rated torque (Nm)TKN325|405|84
Inside diameter of elastomer (mm)DE36,2
Outside diameter (mm)B82
Moment of inertia (10-3 kgm2)J1/J20,1
Approximate weight (kg)0,58
Speed standard (min -1)9000
Hub length (mm)C20
Maximum torque (Nm)TKmax650|810|170
Overall length (mm)A62
Inside diameter (mm)D45
300
CAD
EKZ Serien450
Type (Elastomer insert)A|B|C
Rated torque (Nm)TKN530|660|95
Inside diameter of elastomer (mm)DE46,2
Outside diameter (mm)B102
Moment of inertia (10-3 kgm2)J1/J20,6
Approximate weight (kg)1,38
Speed standard (min -1)8000
Hub length (mm)C40
Maximum torque (Nm)TKmax1060|1350|190
Overall length (mm)A86
Inside diameter (mm)D60
450
CAD
EKZ Serien800
Type (Elastomer insert)A|B|C
Rated torque (Nm)TKN950|1100|240
Inside diameter of elastomer (mm)DE60,2
Outside diameter (mm)B136,5
Moment of inertia (10-3 kgm2)J1/J21,1
Approximate weight (kg)2,09
Speed standard (min -1)4000
Hub length (mm)C25
Maximum torque (Nm)TKmax1900|2150|400
Overall length (mm)A81
Inside diameter (mm)D80
800
CAD
