BX1
heavy duty balgkoppelingen
Specificaties
Design:
⠀
⠀
⠀
Temperatuurbereik:
Speling:
Service-life:
Toleranties:
Materiaal:
- Balgdeel:
- Naaf:
Lengte:
Optioneel:
Beide zijden flensmontage.
Serie 10: 2 balgen zonder tussenas
Serie 25 ≥ 2 balgen met tussenas en Integrale ondersteuning
Alle verbindingen zijn gelast
-40 - 300 °C
Volledig spelingvrij
Geen service
0.03 - 0.08 mm
Zeer flexibel hoogwaardig roestvrij staal
Staal
In verschillende lengtes leverbaar
Klant specifiek ontwerp en ATEX
Omschrijving

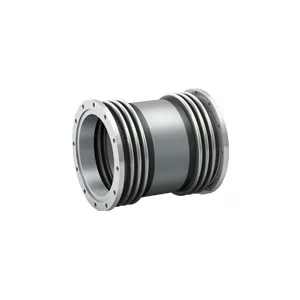

De BX1 heavy duty balgkoppeling van R+W Couplings is zeer geschikt om hoog koppel over te brengen. Daarnaast heeft de BX1 een compact design en is door de aanbouwflenzen eenvoudig te (de)monteren. Deze balgkoppeling is torsie stijf en absoluut spelingvrij. Dankzij de geforceerd gevormde balgvorm kan het element tegelijkertijd zowel laterale, axiale als angulaire uitlijnfouten opvangen. Zolang deze niet buiten het maximale gebied vallen, zal er geen metaalmoeheid in het balgmateriaal optreden en is de koppeling volkomen vrij van slijtage. Deze industrie koppeling kan overal worden toegepast waar precisie transmissie nodig is. Neem voor specifieke vragen over balgkoppeling of andere industrie koppelingen contact op met VARIODRIVE.
Specificaties
Design:
⠀
⠀
⠀
Temperatuurbereik:
Speling:
Service-life:
Toleranties:
Materiaal:
- Balgdeel:
- Naaf:
Lengte:
Optioneel:
Beide zijden flensmontage
Serie 10: 2 balgen zonder tussenas
Serie 25 ≥ 2 balgen met tussenas en Integrale ondersteuning
Alle verbindingen zijn gelast
-40 - 300 °C
Volledig spelingvrij
Geen service
0.03 - 0.08 mm
Zeer flexibel hoogwaardig roestvrij staal
Staal
In verschillende lengtes leverbaar
Klant specifiek ontwerp en ATEX
Specificaties
Design: Beide zijden flensmontage.
Serie 10: 2 balgen zonder tussenas
Serie 25 ≥ 2 balgen met tussenas en Integrale ondersteuning
Alle verbindingen zijn gelast
Temperatuurbereik: -40 - 300 °C
Speling: Volledig spelingvrij
Service-life: Geen service
Toleranties: 0.03 - 0.08 mm
Materiaal:
- Balgdeel: Zeer flexibel hoogwaardig roestvrij staal
- Naaf: Staal
Lengte: In verschillende lengtes leverbaar
Optioneel: Klant specifiek ontwerp en ATEX
Toepassingen
- Test stands
- Centrifuges
- Wind energie
- Gereedschapmachines
- Print systemen
Tabel

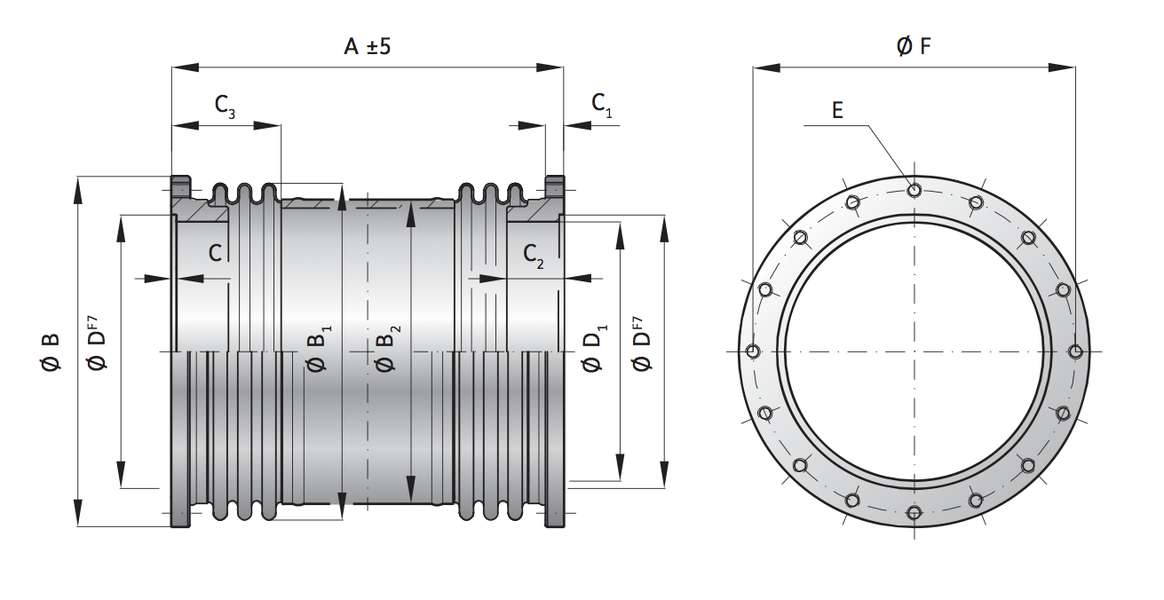

| BX1 Series | |
| Rated torque (kNm) | TKN |
| Overall length (mm) | A±5 |
| Fastening threads* | E |
| Bolt circle diameter ± 0.4 (mm) | F |
| Outside diameter flange (mm) | B |
| Outside diameter of bellows ±2 (mm) | B1 |
| Outside diameter tube section (mm) | B2 |
| Moment of inertia (10-3 kgm2) | Jges. |
| Approximate weight (kg) | |
| Torsional stiffness coupling (103 Nm/rad) | |
| Axial ± (mm)) | max. |
| Lateral ± (mm) | max. |
| Angular ± (degree) | max. |
| Outside diameter of hub +0.3 (mm) | D1 |
| Hub length (mm) | C2 |
| Mounting length +0.5 (mm) | C+0,5 |
| Maximum torque (Nm) | TKmax |
| Thread depth (mm) | C1 |
| Pilot diameter F7 (mm) | D |
| Length bellows body +3 (mm) | C3 |
| Tightening torque of the fastening screws (screw grade 10.9) (Nm) | E |
| Axial spring stiffness bellows (kN/mm) | |
| Lateral spring stiffness bellows (kN/mm) | |
| BX1 Series | |
| Rated torque (kNm) | TKN |
| Overall length (mm) | A±5 |
| Fastening threads* | E |
| Bolt circle diameter ± 0.4 (mm) | F |
| Outside diameter flange (mm) | B |
| Outside diameter of bellows ±2 (mm) | B1 |
| Outside diameter tube section (mm) | B2 |
| Moment of inertia (10-3 kgm2) | Jges. |
| Approximate weight (kg) | |
| Torsional stiffness coupling (103 Nm/rad) | |
| Axial ± (mm)) | max. |
| Lateral ± (mm) | max. |
| Angular ± (degree) | max. |
| Outside diameter of hub +0.3 (mm) | D1 |
| Hub length (mm) | C2 |
| Mounting length +0.5 (mm) | C+0,5 |
| Maximum torque (Nm) | TKmax |
| Thread depth (mm) | C1 |
| Pilot diameter F7 (mm) | D |
| Length bellows body +3 (mm) | C3 |
| Tightening torque of the fastening screws (screw grade 10.9) (Nm) | E |
| Axial spring stiffness bellows (kN/mm) | |
| Lateral spring stiffness bellows (kN/mm) | |
