Specificaties

Design:


Temperatuurbereik:
Speling:
Service-life:
Materiaal:
- Balgdeel:
- Naaf:
Piekbelasting:
Snelheid:
Optioneel:

Koppeling met klemnaaf aan beide zijden
Iedere klemnaaf is uitgevoerd met één ISO 4762 klemschroef
-30 - 100 °C
Geen
Geen service

Zeer flexibel hoogwaardig roestvrij staal
Zie tabel
Tot 1,5x voorgeschreven waarden
Tot 10.000 rpm, > 10.000 rpm bij fijn uitgebalanceerde versie
Klant specifiek ontwerp, ATEX en cleanroom versie op aanvraag

Omschrijving

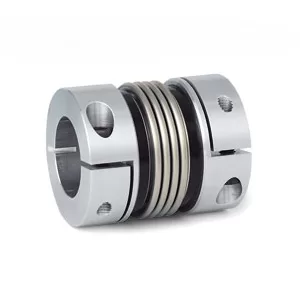

Het type BKL balgkoppeling van R+W Couplings is de “economy” variant van de BK2 en is door klemnaven eenvoudig te monteren. Daarnaast bezit de BKL koppeling een laag massatraagheidsmoment en is deze precisie koppeling door het gebruik van frictie klemverbinding absoluut spelingsvrij. Dankzij de geforceerd gevormde balgvorm kan het element tegelijkertijd zowel laterale, axiale als angulaire uitlijnfouten opvangen. Zolang deze niet buiten het maximale gebied vallen, zal er geen metaalmoeheid in het balgmateriaal optreden en is de koppeling volkomen vrij van slijtage. Voor specifieke vragen over balgkoppelingen neem dan contact op met VARIODRIVE.

Specificaties

Design:

Temperatuurbereik:
Speling:
Service-life:
Materiaal:
- Balgdeel:
- Naaf:
Piekbelasting:
Snelheid:
Optioneel:

Koppeling met klemnaaf aan beide zijden
Iedere klemnaaf is uitgevoerd met één ISO 4762 klemschroef
-30 - 100 °C
Geen
Geen service

Zeer flexibel hoogwaardig roestvrij staal
Zie tabel
Tot 1,5x voorgeschreven waarden
Tot 10.000 rpm, > 10.000 rpm bij fijn uitgebalanceerde versie
Klant specifiek ontwerp, ATEX en cleanroom versie op aanvraag

Specificaties

Design: Koppeling met klemnaaf aan beide zijden. Iedere klemnaaf is uitgevoerd met één ISO 4762 klemschroef
Temperatuurbereik: -30 - 100 °C
Speling: Geen
Service-life: Geen service
Materiaal:
- Balgdeel:
Zeer flexibel hoogwaardig roestvrij staal
- Naaf: Zie tabel
Piekbelasting: Tot 1,5x voorgeschreven waarden
Snelheid: Tot 10.000 rpm, > 10.000 rpm bij fijn uitgebalanceerde versie
Optioneel: Klant specifiek ontwerp, ATEX en cleanroom versie op aanvraag

Toepassingen

  • Machinebouw
  • Servo-drive technologie
  • Medische technologie
  • Luchtvaart
  • Renewable energy
  • Transportsystemen

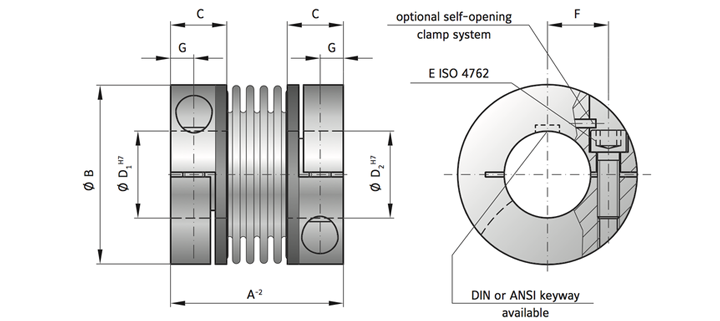

BKL Serien2
Rated torque (Nm)TKN2
Overall length (mm)A-230
Fit length (mm)C10,5
Inside diameter possible from Ø to Ø H7 (mm)
D1/D24-12,7
Outside diameter (mm)B25
Moment of inertia (10-3 kgm2)Jges.0,002
Approximate weight (kg)0,02
Torsional stiffness (10³ Nm/rad)CT1,5
Axial ± (mm))max.0,5
Lateral ± (mm)max.0,2
Angular ± (degree)max.1
Axial spring stiffness (N/mm)Ca8
Lateral spring stiffness (N/mm)Cr50
Fastening screw (ISO 4762)EM3
Tightening torque of the fastening screw (Nm)E2,3
Distance between centerlines (mm)F8
Distance (mm)G4
Hub materialAluminium
optional Steel
2
CAD
BKL Serien4,5
Rated torque (Nm)TKN4,5
Overall length (mm)A-240
Fit length (mm)C13
Inside diameter possible from Ø to Ø H7 (mm)
D1/D26-16
Outside diameter (mm)B32
Moment of inertia (10-3 kgm2)Jges.0,007
Approximate weight (kg)0,05
Torsional stiffness (10³ Nm/rad)CT7
Axial ± (mm))max.1
Lateral ± (mm)max.0,2
Angular ± (degree)max.1
Axial spring stiffness (N/mm)Ca35
Lateral spring stiffness (N/mm)Cr350
Fastening screw (ISO 4762)EM4
Tightening torque of the fastening screw (Nm)E4
Distance between centerlines (mm)F11
Distance (mm)G5
Hub materialAluminium
optional Steel
4,5
CAD
BKL Serien10
Rated torque (Nm)TKN10
Overall length (mm)A-244
Fit length (mm)C13
Inside diameter possible from Ø to Ø H7 (mm)
D1/D26-24
Outside diameter (mm)B40
Moment of inertia (10-3 kgm2)Jges.0,016
Approximate weight (kg)0,06
Torsional stiffness (10³ Nm/rad)CT9
Axial ± (mm))max.1
Lateral ± (mm)max.0,2
Angular ± (degree)max.1
Axial spring stiffness (N/mm)Ca30
Lateral spring stiffness (N/mm)Cr320
Fastening screw (ISO 4762)EM4
Tightening torque of the fastening screw (Nm)E4,5
Distance between centerlines (mm)F14
Distance (mm)G5
Hub materialAluminium
optional Steel
10
CAD
BKL Serien15
Rated torque (Nm)TKN15
Overall length (mm)A-258
Fit length (mm)C21,5
Inside diameter possible from Ø to Ø H7 (mm)
D1/D28-28
Outside diameter (mm)B49
Moment of inertia (10-3 kgm2)Jges.0,065
Approximate weight (kg)0,16
Torsional stiffness (10³ Nm/rad)CT23
Axial ± (mm))max.1
Lateral ± (mm)max.0,2
Angular ± (degree)max.1
Axial spring stiffness (N/mm)Ca30
Lateral spring stiffness (N/mm)Cr315
Fastening screw (ISO 4762)EM5
Tightening torque of the fastening screw (Nm)E8
Distance between centerlines (mm)F17
Distance (mm)G6,5
Hub materialAluminium
optional Steel
15
CAD
BKL Serien30
Rated torque (Nm)TKN30
Overall length (mm)A-268
Fit length (mm)C26
Inside diameter possible from Ø to Ø H7 (mm)
D1/D210-32
Outside diameter (mm)B56
Moment of inertia (10-3 kgm2)Jges.0,12
Approximate weight (kg)0,25
Torsional stiffness (10³ Nm/rad)CT31
Axial ± (mm))max.1
Lateral ± (mm)max.0,2
Angular ± (degree)max.1
Axial spring stiffness (N/mm)Ca50
Lateral spring stiffness (N/mm)Cr366
Fastening screw (ISO 4762)EM6
Tightening torque of the fastening screw (Nm)E15
Distance between centerlines (mm)F20
Distance (mm)G7,5
Hub materialAluminium
optional Steel
30
CAD
BKL Serien60
Rated torque (Nm)TKN60
Overall length (mm)A-279
Fit length (mm)C28
Inside diameter possible from Ø to Ø H7 (mm)
D1/D214-35
Outside diameter (mm)B66
Moment of inertia (10-3 kgm2)Jges.0,3
Approximate weight (kg)0,4
Torsional stiffness (10³ Nm/rad)CT72
Axial ± (mm))max.1,5
Lateral ± (mm)max.0,2
Angular ± (degree)max.1
Axial spring stiffness (N/mm)Ca67
Lateral spring stiffness (N/mm)Cr679
Fastening screw (ISO 4762)EM8
Tightening torque of the fastening screw (Nm)E40
Distance between centerlines (mm)F23
Distance (mm)G9,5
Hub materialAluminium
optional Steel
60
CAD
BKL Serien80
Rated torque (Nm)TKN80
Overall length (mm)A-292
Fit length (mm)C32,5
Inside diameter possible from Ø to Ø H7 (mm)
D1/D216-42
Outside diameter (mm)B82
Moment of inertia (10-3 kgm2)Jges.0,75
Approximate weight (kg)0,7
Torsional stiffness (10³ Nm/rad)CT80
Axial ± (mm))max.2
Lateral ± (mm)max.0,2
Angular ± (degree)max.1
Axial spring stiffness (N/mm)Ca44
Lateral spring stiffness (N/mm)Cr590
Fastening screw (ISO 4762)EM10
Tightening torque of the fastening screw (Nm)E70
Distance between centerlines (mm)F27
Distance (mm)G11
Hub materialAluminium
optional Steel
80
CAD
BKL Serien150
Rated torque (Nm)TKN150
Overall length (mm)A-292
Fit length (mm)C32,5
Inside diameter possible from Ø to Ø H7 (mm)
D1/D219-42
Outside diameter (mm)B82
Moment of inertia (10-3 kgm2)Jges.1,8 | 0,8
Approximate weight (kg)1,7 | 0,75
Torsional stiffness (10³ Nm/rad)CT141
Axial ± (mm))max.2
Lateral ± (mm)max.0,2
Angular ± (degree)max.1
Axial spring stiffness (N/mm)Ca77
Lateral spring stiffness (N/mm)Cr960
Fastening screw (ISO 4762)EM10
Tightening torque of the fastening screw (Nm)E85
Distance between centerlines (mm)F27
Distance (mm)G11
Hub materialSteel
optional Aluminium
150
CAD
BKL Serien300
Rated torque (Nm)TKN300
Overall length (mm)A-2109
Fit length (mm)C41
Inside diameter possible from Ø to Ø H7 (mm)
D1/D224-60
Outside diameter (mm)B110
Moment of inertia (10-3 kgm2)Jges.7,5 | 3,1
Approximate weight (kg)3,8 | 1,6
Torsional stiffness (10³ Nm/rad)CT157
Axial ± (mm))max.2
Lateral ± (mm)max.0,2
Angular ± (degree)max.1
Axial spring stiffness (N/mm)Ca112
Lateral spring stiffness (N/mm)Cr2940
Fastening screw (ISO 4762)EM12
Tightening torque of the fastening screw (Nm)E120
Distance between centerlines (mm)F39
Distance (mm)G13
Hub materialSteel
optional Aluminium
300
CAD
BKL Serien500
Rated torque (Nm)TKN500
Overall length (mm)A-2114
Fit length (mm)C42,5
Inside diameter possible from Ø to Ø H7 (mm)
D1/D235-62
Outside diameter (mm)B123
Moment of inertia (10-3 kgm2)Jges.11,7 | 4,9
Approximate weight (kg)4,9 | 2,1
Torsional stiffness (10³ Nm/rad)CT290
Axial ± (mm))max.2,5
Lateral ± (mm)max.0,2
Angular ± (degree)max.1
Axial spring stiffness (N/mm)Ca72
Lateral spring stiffness (N/mm)Cr1450
Fastening screw (ISO 4762)EM16
Tightening torque of the fastening screw (Nm)E200
Distance between centerlines (mm)F41
Distance (mm)G17
Hub materialSteel
optional Aluminium
500
CAD
